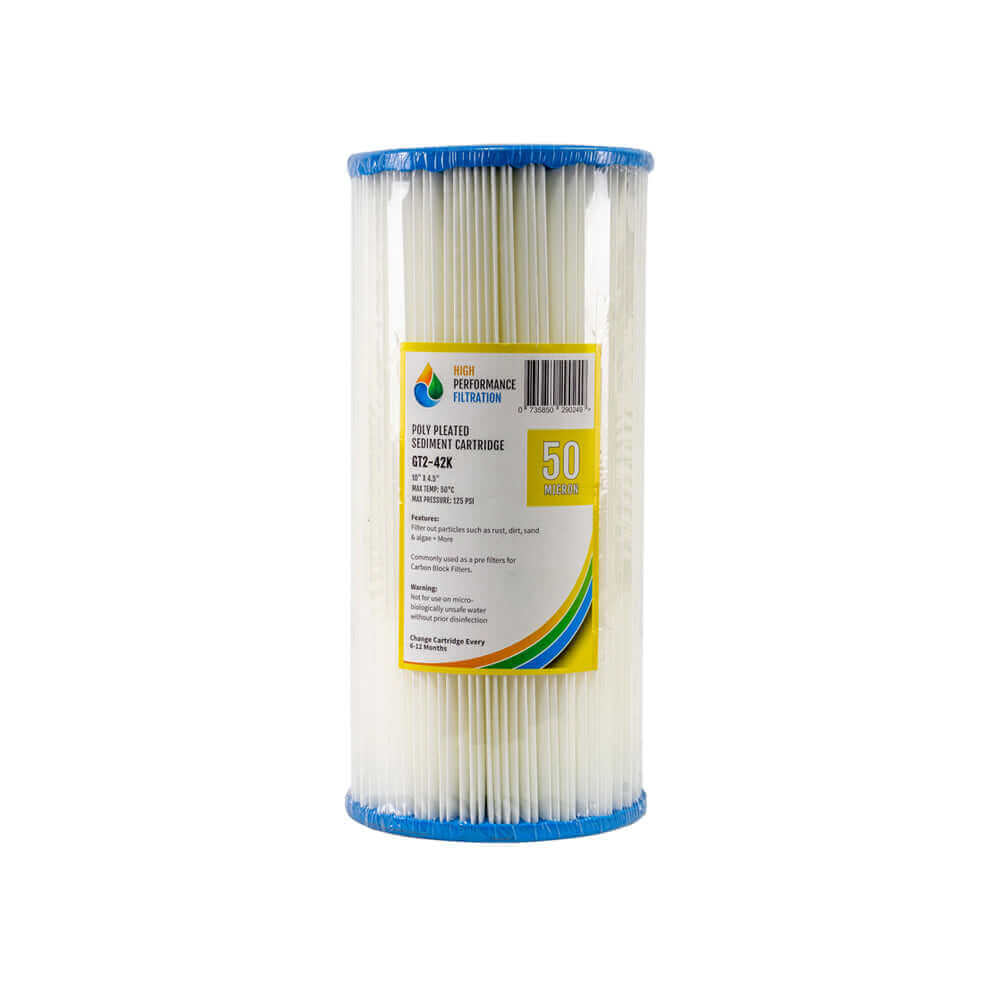

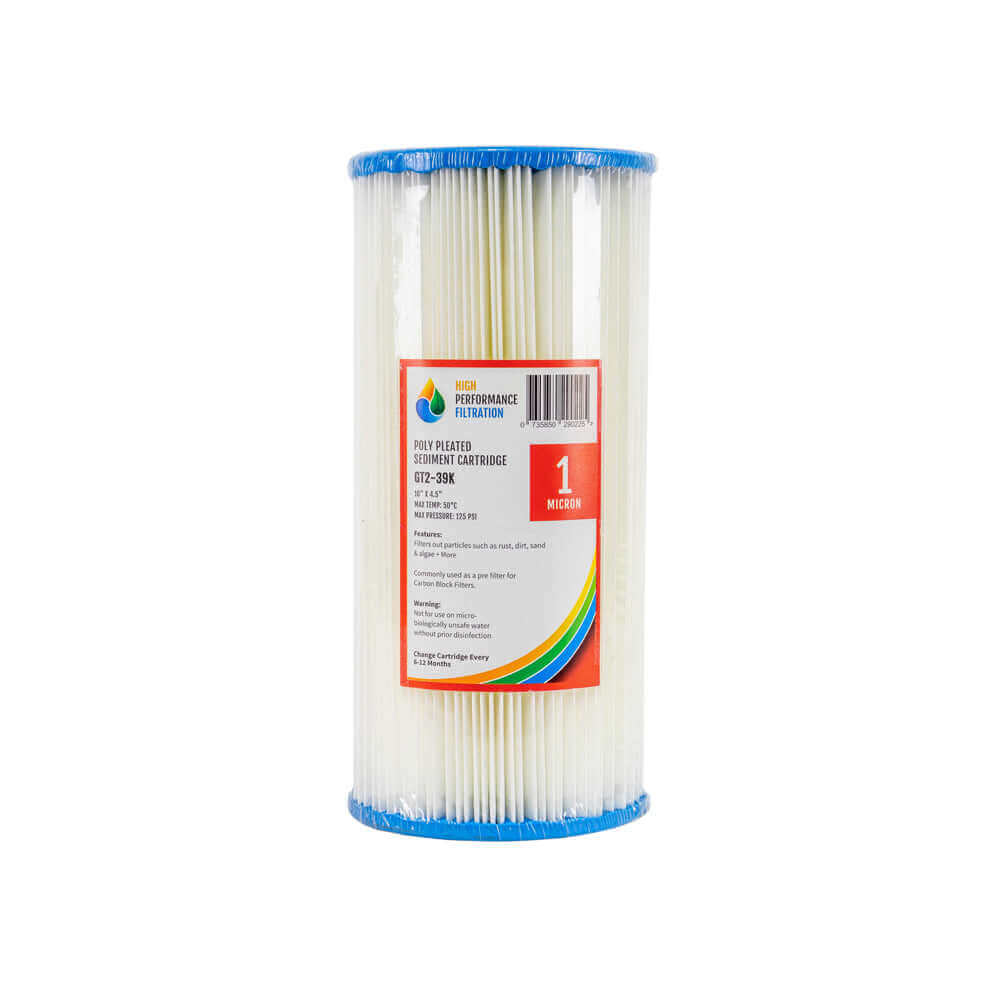

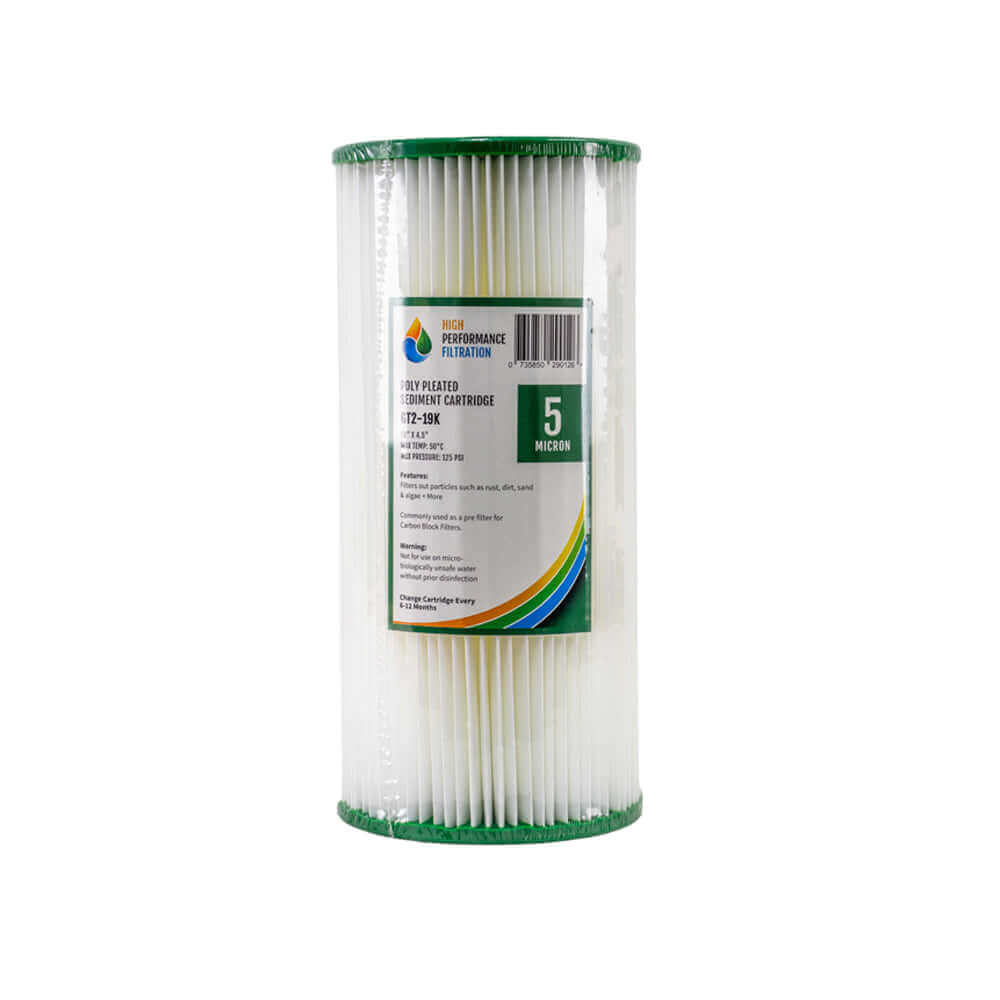

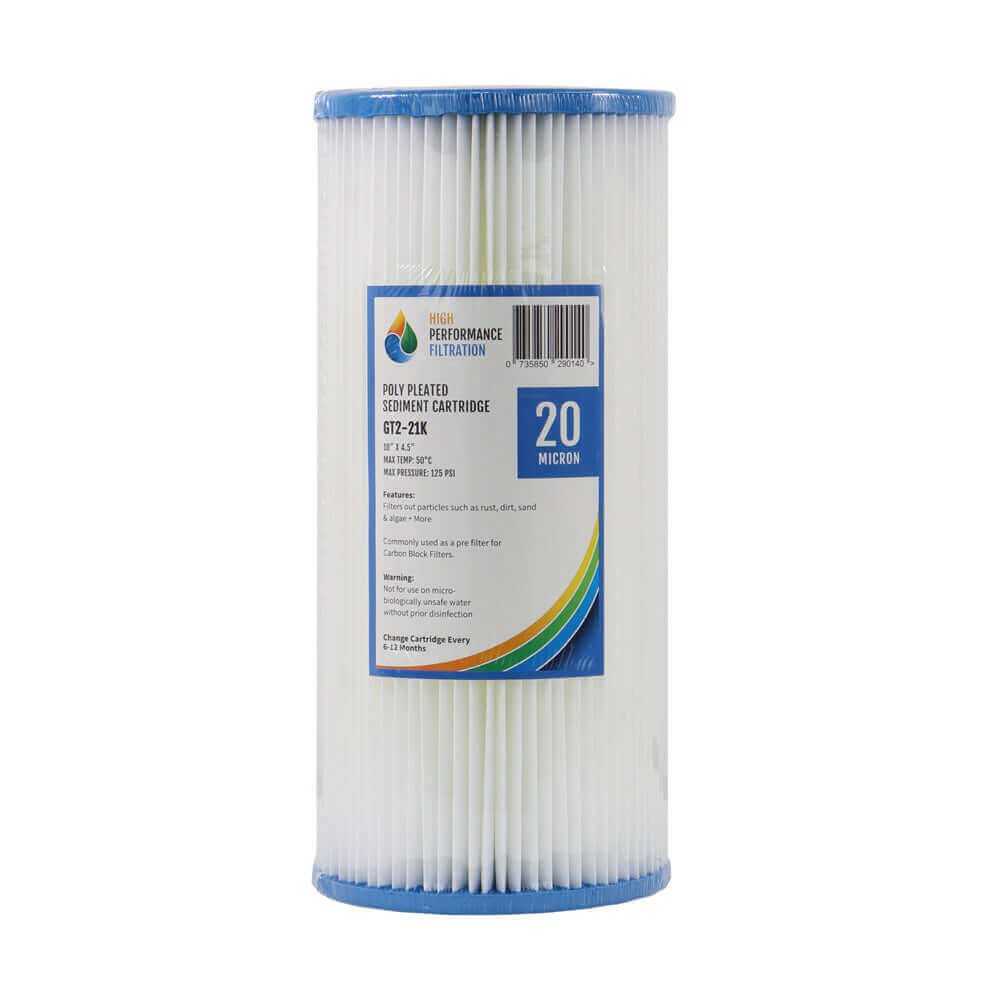

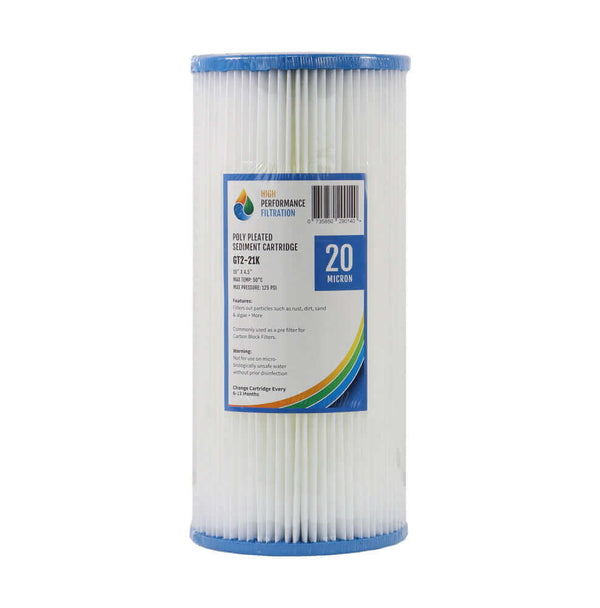

HPF Pleated Sediment Whole House Water Filter Replacement Cartridge 10" x 4.5"

High Performance Filtration Pleated Filters are manufactured using Virgin 100% Polypropylene Fibre. Pleated filters are best utilised where there are higher levels of sediment or dirt in the water that would usually block polypropylene spun filters prematurely.

HPF’s range of Polypropylene Pleated Filters are compatible with most liquids and are highly effective at reducing Sediment, Rust, Sand, Silt and Algae. Pleated cartridges have a much larger surface area for filtration, allowing the cartridge to have a heavier sediment load before compromising pressure or flow in a system. The increased surface area is also designed for higher flow rate systems. This allows the filter to perform exceptionally over its entire lifespan.

Fit all standard industry water filter housings 4.5” x 10”

Sediment filtration is a vital part of any water filtration process. A sediment filtration cartridge does just that, it removes the sediments from the water source you are trying to filter. At times preparing the water quality for the next stage in the process so that cartridge can perform at its best and last for as long as possible.There are different types of sediment filter cartridges. We currently stock 3 of the most popular styles.

• Pleated Polyester washable

• Polyspun

• String Wound Polypropylene

All available in a range of dimensions and micron sizes for different applications.

Pleated Cartridges

Pleated Sediment cartridges offer a simple means of filtration.

The materials also provide a resilient barrier to bacterial/chemical influence – preventing any build of unwanted waste (e.g. algae).

Cartridge Information

Filter cartridge manufacturers rate cartridges in "microns". Microns are a size measurement of the pore size, so the smaller the number, the tighter the filter. One-micron filters are for drinking water only. In general, they are too tight to filter large amounts of water without slowing the flow to unacceptable levels.

Filter cartridge manufacturers also use the words "absolute" and "nominal" to describe their products' micron ratings. Absolute means absolute. Nominal means "more or less."

With pleated sediment cartridges as the water flows through this cartridge style very easy it is possible to use low micron cartridges for hi flow applications.

Sediment Cartridges Remove

• Algae

• Dirt

• Particulate matter

• Rust

• Sand

• Sediment

• Silt

Please note: Do not rely on sediment cartridges to filter untreated or unknown water sources for human consumption.

Cartridge Guide

Drinking Water Filter Cartridges

It is the micron size & the physical size of the cartridge which determines what that particular sediment cartridge can be used for.

For whole house filtration you can go as low as 5 micron. But for drinking water you would want to use from the 1 micron size down smaller.

If you require a cartridge for a drinking water filter system the guide below will help you. Then just click the appropriate drop down box above to add that product to your shopping cart.

Save Money

Save by buying all your cartridges you need in one go. Save by not having to waste money on buying bottled water.

Installation

When installing or replacing any water filter cartridges ensure the main water supply is turned off prior to starting. Ensure you know what you are doing or have a qualified person to help You.

Maintenance and Replacement of Cartridges

Long lasting service life of 12 months

Cartridges are very easy to replace and only have to be changed over once per year. When this time comes around we will be in contact with you, so its basically hands free water filtration if you deal with us.
