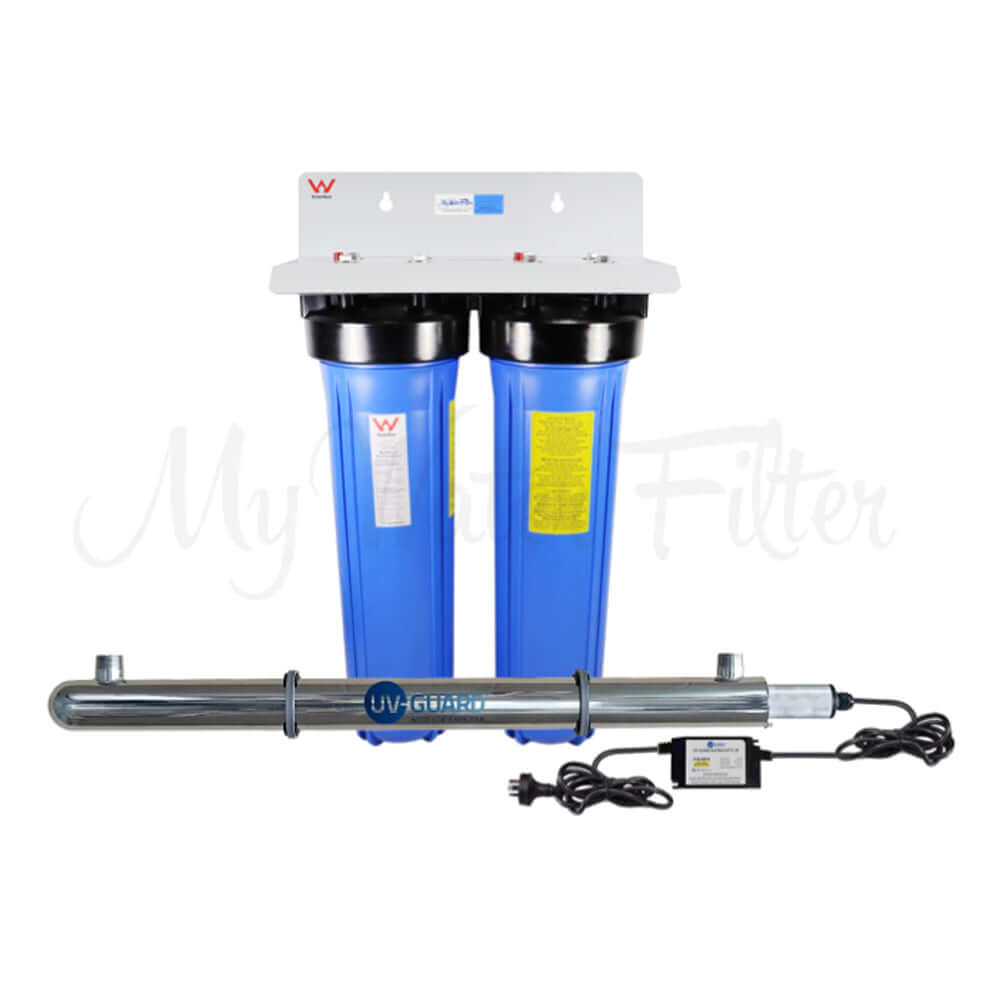

MWF 20" x 4.5" Twin Big Blue Whole House Rain Water Tank Filter System Complete with Ultraviolet Light
A user-friendly unit designed to overcome the challenges and health RISKS associated with RAIN water today.
This is a complete whole of house RAIN water tank filtration system designed to suit any sized home. Created to ensure using & drinking the water in your home is safe to do so.
Filters the debris from the water, removes any taste or odor, then the UV light sterilises the water and kills any bacteria or bugs present in the water at an incredible rate of up to 46 litres per minute, prior to flowing into your home.
Minimal unnoticeable pressure drop or flow rate drop with this high volume system designed to be installed after your pressure pump.
If You are Wondering if you really need to treat Your Rain Water
– PLEASE take a look at this link below…
The BIG problem with our RAIN water supplies today
The issue with our RAIN water supplies today is we are a drying country, less rainfall equals lower quality water. The longer the water sits in your tank without been flushed with new fresh rainwater the more susceptible it is to been contaminated.
Now I don't want to put you off rainwater, but in my 20 plus years in the rainwater tank industry, you don't want to know the number of horrible things I have removed from family home drinking water tanks.
At this point, I am thinking you will be wondering well how bad can it really be? Maybe I will just get a little stomach ache or sit on the toilet for a while at the worst case. But nothing could be further from the truth. When water is untreated, anything can grow in it.
-
Rainwater is untreated water, water that is untreated with UV light or chemicals is a pleasant place for bacteria and bugs to grow.
-
Rainwater normally has a low pH, the lower the pH the more acidic the water. It is the acidic water that creates the problems.
-
Rainwater attacks our homes, rainwater can eat out all the copper pipes throughout your home, sometimes creating irreversible damage and costing tens of thousands of dollars to replace. If your concerned the first sign can be inside your kettle is all Black or you have blue/green staining on your white bathroom basin. Have your pH tested at the source.
-
Rainwater consumed regularly can be a health hazard, it is no secret nowadays that acidic water is not preferred by our health professionals. You only have to go online to see the massive amount of information against acidic water and drinks in general. Linking acid to arthritis, gout, cancer you name it the list is growing constantly. As humans we are healthier drinking alkaline water, you may want to consider this.
-
Rainwater gets contaminated, Birds and other animals pollute the water catchment areas your rainwater travels as it fills the tank. Very hard or impossible to stop the water been contaminated in this way.
-
Rain gets polluted on the way down, As the clouds erupt and the rain falls down the water can pass through contaminated layers in the atmosphere. With so much air pollution these days it is easy to understand why.
How does the system work?
As the water flows into the first stage of the Big Blue water filter this is where the water is screened and any sediment is removed ready for stage 2 where the high volume carbon block cartridge removes any taste, smell or odor. This carbon block cartridge is also responsible to protect from pesticides and herbicides.
Then the disinfection takes place as clean filtered water flows through the chamber of the UV lamp.
This whole house water filter is a strong robust filter that is specifically designed for places where high flow rate is required whether for your home, commercial or industrial use. Treating water up to 46 litres per minute.
The Filtration

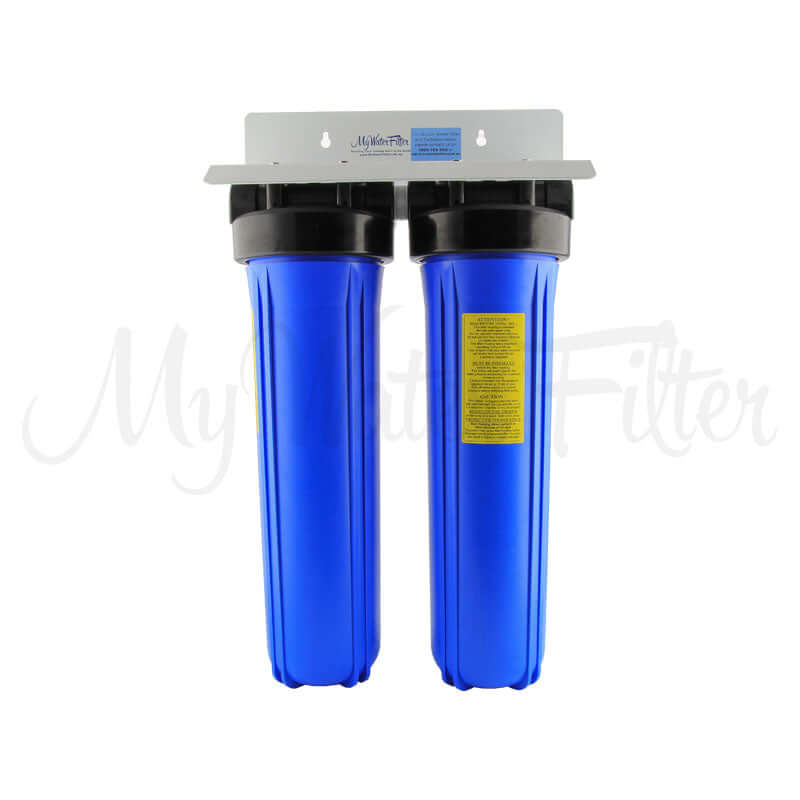

This whole house system is made up of 2 - 20” x 4.5” robust filter housings
-
The filter housing is supplied with a very strong support bracket
-
It has a air bleeder valve fitted to each filter housing cap
-
It comes with a 3/4” BSP inlet & outlet
-
5-year warranty on all housings - 1-year warranty on parts

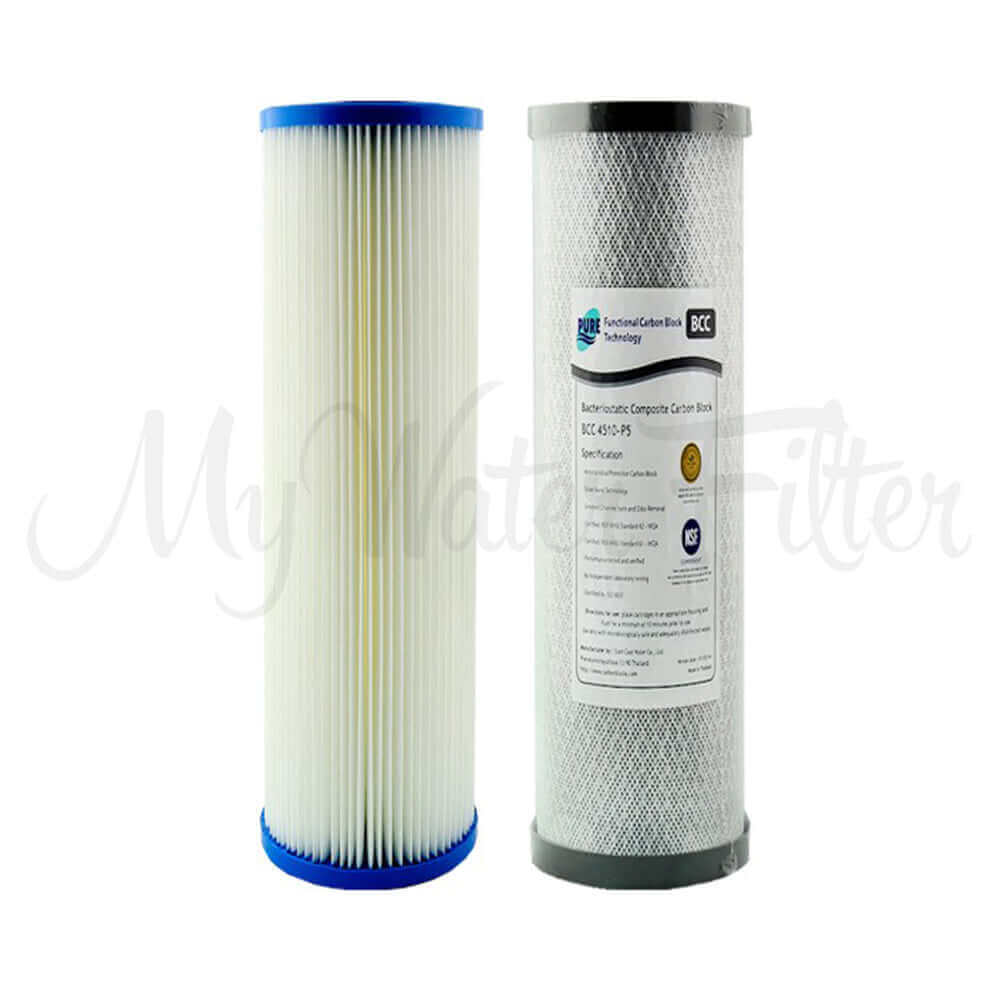

Stage 1: 5 Micron Pleated Washable Sediment Cartridge
This cartridge is capable of removing Algae, Dirt, Particles, Rust, Sand, Sediment and Silt so your water is debris-free and prepared for the next stage of this filtration process.
Apart from removing the sediment from your water supply so you have cleaner water this filter is also the protection cartridge for the carbon block cartridge that follows, keeping it as clean as possible so it can work to it’s full potential removing contaminants.They are a high quality pleated sediment cartridge.
These cartridges have a large sediment holding capacity for a longer lifespan. Extremely important when the water contains sediment. These filters are our preferred sediment cartridge as they can be lightly rinsed and washed clean as required if you have heavy sediment.
Stage 2: 5 Micron Silver Impregnated Carbon Block Cartridges
This carbon block cartridge will provide maximum removal of taste, smell or odor from your water supply. This is a great cartridge for removing organic’s, chemicals and microorganisms.
Impregnated with silver to stop any bacteria growth inside the cartridge. All our Filter cartridges are manufactured from the highest quality, raw materials with cutting-edge methods resulting in premium performance, reliability, absorption and flow rates.
It is the volume of water and the contaminants in the water supply that will eventually dictate the lifespan of your cartridges but normally these cartridges are changed annually.
Stage 3: Ultra Violet Light Sterilisation
U/V System - 46 Ltr/min
Commercial Grade - 316 Stainless Steel
The ultraviolet light has become a very popular way of steralising water without the use of chemicals in our modern world. The germicidal short wave radiation produced by the ultraviolet lamp kills any kind of microbiological contamination present in the water including bacteria and viruses.
No micro-organism is known to be immune to UV.
Features Include:
-
Suitable for ALL OF HOUSE use or commercial or industrial
-
Commercial Grade Stainless Steel: 316 construction
-
Visual and audible Lamp Fail Alarms fitted to alert you (Depending on what controller you choose)
-
BSP threaded connections on the same side for easy connections
-
Efficient, low pressure, high-intensity UV lamp
-
Using the highest grade “hard glass” pure fused quartz to allow the highest output.
Specifications:
Flow: 46 lpm
Systems Dimensions: Length without plug 900mm
Thimble: Quarts Dome type Thimble
Port: 1” Male BSP
Lamp Power: 40 watt
Warranty: 12 months
Required:
The vessel is rated to 100 psi. If your water pressure is above 90 psi the unit must be installed with an Australian Standards Approved Pressure Limiting Valve.
A shut off valve must be installed before & after the unit in order to turn the water off for servicing and to ensure the flow is restricted to the parameters of the unit.
Ensure adequate clearance at the lamp connection end of the unit in order to safely remove the lamp from the chamber for servicing and lamp replacement.
Space required to replace the lamp is at least the length of the UV chamber.
Earthing:
This system has the earth built into the power lead. Simply attach the supplied power lead and the earthing is taken care of.
Technical Data:
UV systems are not designed to be turned on and off as the water is required.
UV lights are designed to be turned on and stay on.
UV lamps take time to warm up and go through the stages before they are at full capacity to kill any bugs in the water.
Always turn on the UV for 1 minute before you require to use it.
UV lights can be turned off when going away for holidays or extended periods.
Lamps should be changed once every year.
The lamp may still be working, but after 1 year, the power will not be guaranteed to be strong enough to kill bacteria.
The thimble inside the UV housing should be cleaned as required so the most light can penetrate into the water inside the UV housing.
Life:
9000 hours (1 year) lamp life Working Pressure is up to 100PSI

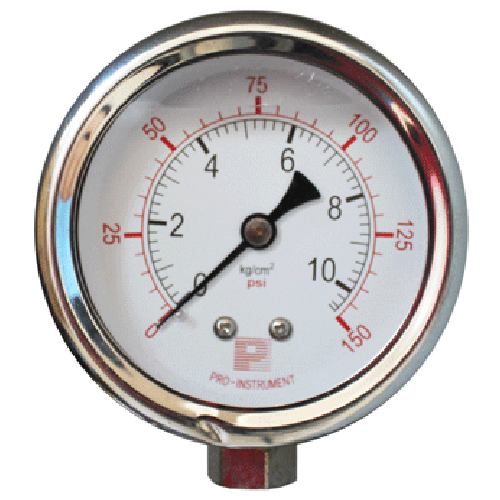

Gauges
Supplied with 2 quality gauges so you can tell how the system is performing at all times. Once the system is installed and working you will be able to see your normal water pressure across the 2 gauges.
These gauges allow you to know when to change the cartridges, so you don't waste money replacing cartridges that still have life left in them. A great asset to easily see how the cartridges are performing at all times.

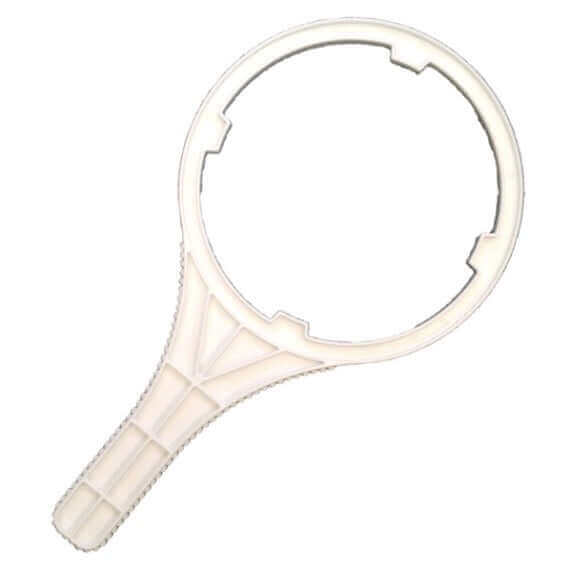

Cartridge Replacement Tool
This handy molded cartridge housing tool is used to break the seal or tighten up the cartridge housings when required. Normally only ever used when you do your annual cartridge replacement.

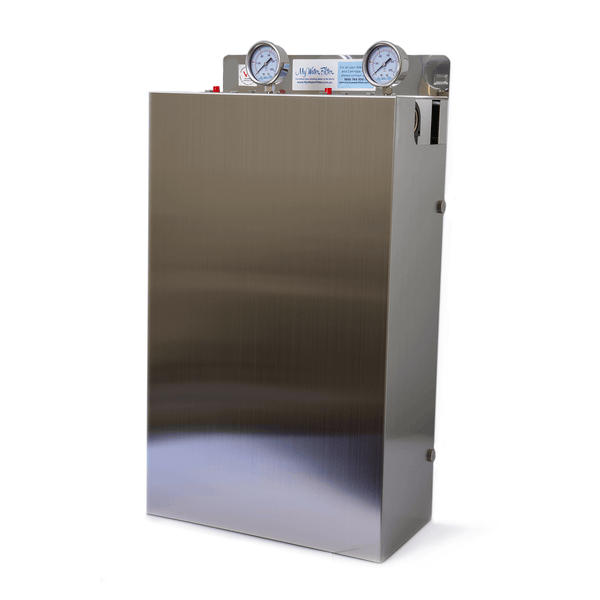

Stainless Steel Cover
While our whole-house water filter delivers exceptional results, consider adding an optional stainless steel cover for an extra layer of benefits. Built for the harsh Australian climate, a stainless steel cover is the perfect upgrade to elevate your home's exterior and safeguard your water filtration system.
Features:
- Rust and corrosion resistant
- UV protection to extend filter life
- Tamper-resistant design
- Withstands extreme temperatures
Benefits:
- Longer system lifespan
- Enhanced durability over powder-coated options
- Sleek, modern look to complement your home
- Easy installation

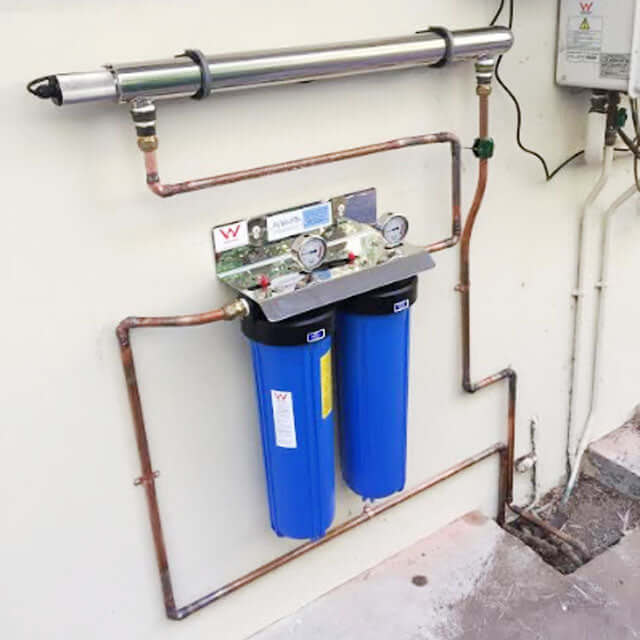

How to install your new water filter system
When installing any water filtration device make sure the electricity and the main water supply are turned off prior to starting. Ensure you know what you are doing or have a qualified person to help install the filter. Take a look at the little how to install video in the Installation TAB.
- Ensure you have a surge protection device to plug the UV controller into - MUST HAVE - Even a cheap one will do.
- Stainless Steel Housing can withstand been in the weather but the electrical control box is required to be kept dry out of the weather
- The UV Globe is designed to - STAY ON AT ALL TIMES - But if you are going away you can turn this device off.
- This is a pressure system, this system is designed to be connected to the delivery side of the pump. This means install the system after the pump so the water is being pushed through the system. Please do not install this system on the suction side of any pump as they are not designed for suction.
What Tools we use for a Whole House Water Filter Installation
How to Install a Whole House Water Filter
How to Install a UV Guard Ultraviolet Light System for a Rain Water Tank Water Filter System
How To Sterilise & Prepare Your Water System
-
The Hydrosil ULTRA Tank Water Sanitiser comes in 1, 5 & 20 litres. Click here to purchase this product
Maintenance and Replacement Cartridges
Cartridges are very easy to replace and need to be changed over every 12 months depending on your water quality and usage.
The UV light should be replaced annually.
The thimble is replaced as required dependent on the water quality, normally 2 - 4 years.
Take a look at the video below as he changes the cartridges in the twin whole house water filter system.
How to change the cartridge in your Whole House Twin Rain Water Filter System
Automatic Cartridge Replacement Service
When you invest in a water filtration product from My Water Filter®, we like to ensure you have the best experience possible. We like to lend a hand & take care of you as best we can.
-
We happily monitor the cartridge life for you
-
When the cartridge is due for renewal, we then contact you
-
Once confirmed, we arrange everything and have a new replacement cartridge delivered to your door.
Save Money
Using this whole house water filter system stops sediment buildup throughout your home appliances ensureing they work to there full potential and last as long as possible. No more buying bottled water. Enjoy your own filtered steralised rainwater fresh from the sky.
Warranty
The Big Blue High Flow Twin 20” x 4.5” housing is covered by a full 5-year warranty, the parts have a full 1-year warranty to ensure you have clean and safe hassle-free water.
The UV lamp system has a 12-month warranty.
The My Water Filter® Difference
“We love our products and what we do so below are just some of the things we do to make a difference”
We Give Together
When you buy a water filter or home water solution from My Water Filter®, at no extra cost to you, we give life-changing drinking water to people in need on your behalf.
Bit by bit we make a difference together. Check out our Giving page here.
“We also deliver our products for FREE and you get a 30-day money-back guarantee.
The product comes with free insurance too!”
To Summarize
If you have any questions or you'd like a friendly chat to discuss your requirements call us on 1800 769 300.
We are always happy to have a chat and guide you along the correct path for your individual situation.
Free Delivery Australia Wide
Our 10 Guarantees
30 Day Money Back Guarantee
5 & 1 Year Warranty
| Product ID | 507 |
| Model | MWF 20" x 4.5" Twin Big Blue Whole House Rain Water Tank Filter System Complete with Ultraviolet Light & Positive Charged Water Magnet |
| Dimensions | Water Filter 385mm W x 700mm H x 205mm D UV Housing length without plug 900mm |
| Housing Warranty | 5 Years |
| Accessories and Parts Warranty | 1 Year |
| Filter Cartridge Size | 20" x 4.5" |
| Country of Manufacturer | Europe |
| Water Type | Rain Water |
