UV Guard UVG SLT30 30 Watt Under Sink Ultraviolet Light System - 34 LPM

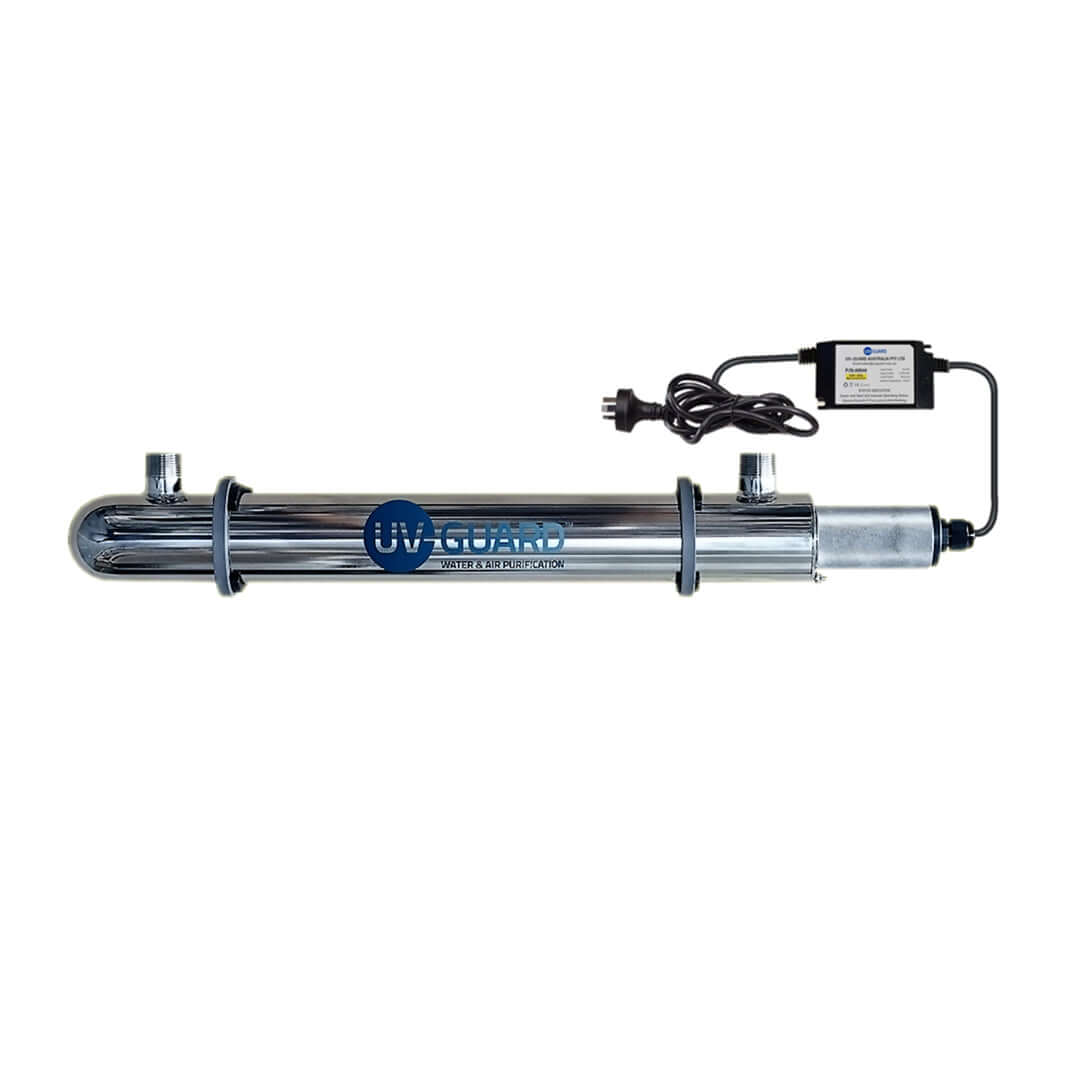

UV System (small house, 34 lpm) with 316 grade stainless steel reactor, 3/4" male BSP inlet and outlet connections in a "U" formation, 30W UV lamp, quartz, o-ring and heavy duty poly mounting brackets.
Please select your desired CONTROLLER from the drop down box above.
The SLT-Series is a cost effective and high performing UV water disinfection system. With 8 models in the range and options to allow indoor and outdoor installation, the SLT-Series is ideal for under sink, whole of house, swimming pool and pond clarification uses.
Applications
-
Drinking Water Disinfection – under the sink drinking water disinfection, safeguard your drinking water supplies from pathogens and disease.
-
Whole of House Water Disinfection – ensure that your potable water supply is free from E.coli, Giardia and Cryptosporidium.
-
Pond Clarification – protect your fish from disease, prevent algae growth and keep your pond crystal clear all year around.
-
Swimming Pool Treatment – destroy bacteria and viruses, eliminate algae, reduce Chlorine use by 90% and create a safer environment for your family.
-
Any other application where water disinfection is required.
Benefits
-
No micro-organism is known to be immune to UV – even the chlorine resistant Giardia and Cryptosporidium.
-
Economical and efficient operation – disinfecting at the point of use, no contact time required.
-
No harmful by-products – chemical free, no impact on taste and no corrosion problems.
-
No risk of overdosing – reducing the risks associated with chemical overdosing.
-
Easy maintenance – lamp can be replaced easily without interrupting water flow.
-
Proven performance and flexibility – system designed according to application and project requirements.
-
Peace of mind – power supplies show when lamp is in operation and audibly alerts any faults.
Standard Features
-
High quality 316 grade stainless steel reactor* – ensures longevity of the system.
-
BSP threaded connections on same side – for ease of connection to plumbing infrastructure.
-
Easy to install brackets – chambers securely snap into position.
-
Lamp fail alarm – alerts user and prevents untreated water from being consumed.
-
Innovative high output, low pressure UV lamps – target UV dose is maintained throughout lamp life.
-
Pure fused quartz sleeves – allows optimum UV output from the lamp to the water.
-
Lamps parallel to water flow – water disinfected from chamber entry point to exit.
Please choose from the dropdown above to add this to your UV system.

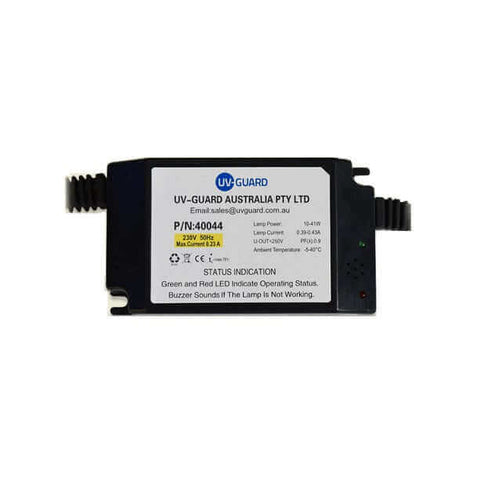

Basic indoor controller – lamp on/off LEDs and lamp fail alarm.

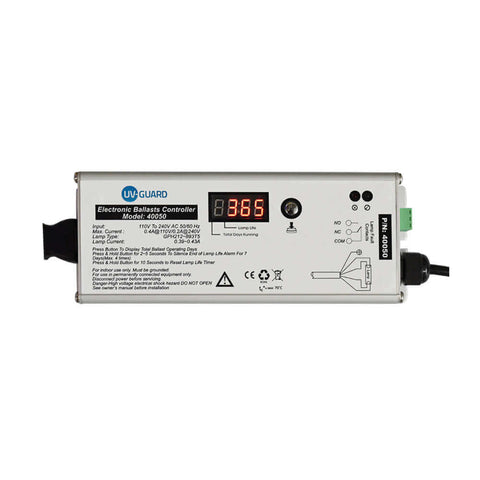

Digital indoor controller – lamp on/off LEDs, lamp fail alarm, digital lamp life timer and volt free alarm contacts.

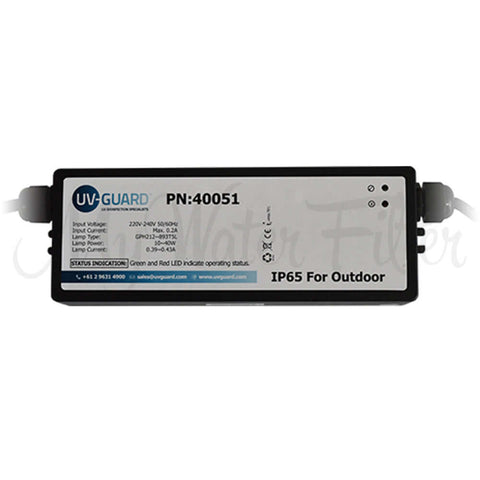

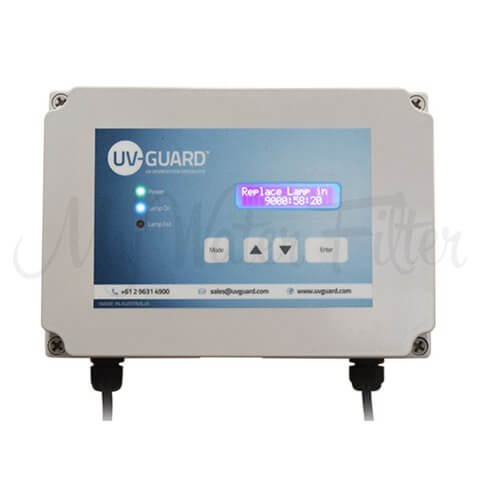

Weatherproof PLC – IP65 rated, lamp on/off LEDs, lamp fail alarm, digital lamp life timer and volt free alarm contacts.
Specifications
| Model |
Flow rate per
UV Dose figure**
40mJ/cm² |
Flow rate per
UV Dose figure**
30mJ/cm² |
Connection |
Lamp Power (W) |
Dimensions (cm) |
| UVG SLT30 |
16.0 lpm |
21.3 lpm |
¾” male BSP |
30 |
60l x 6.3w |
