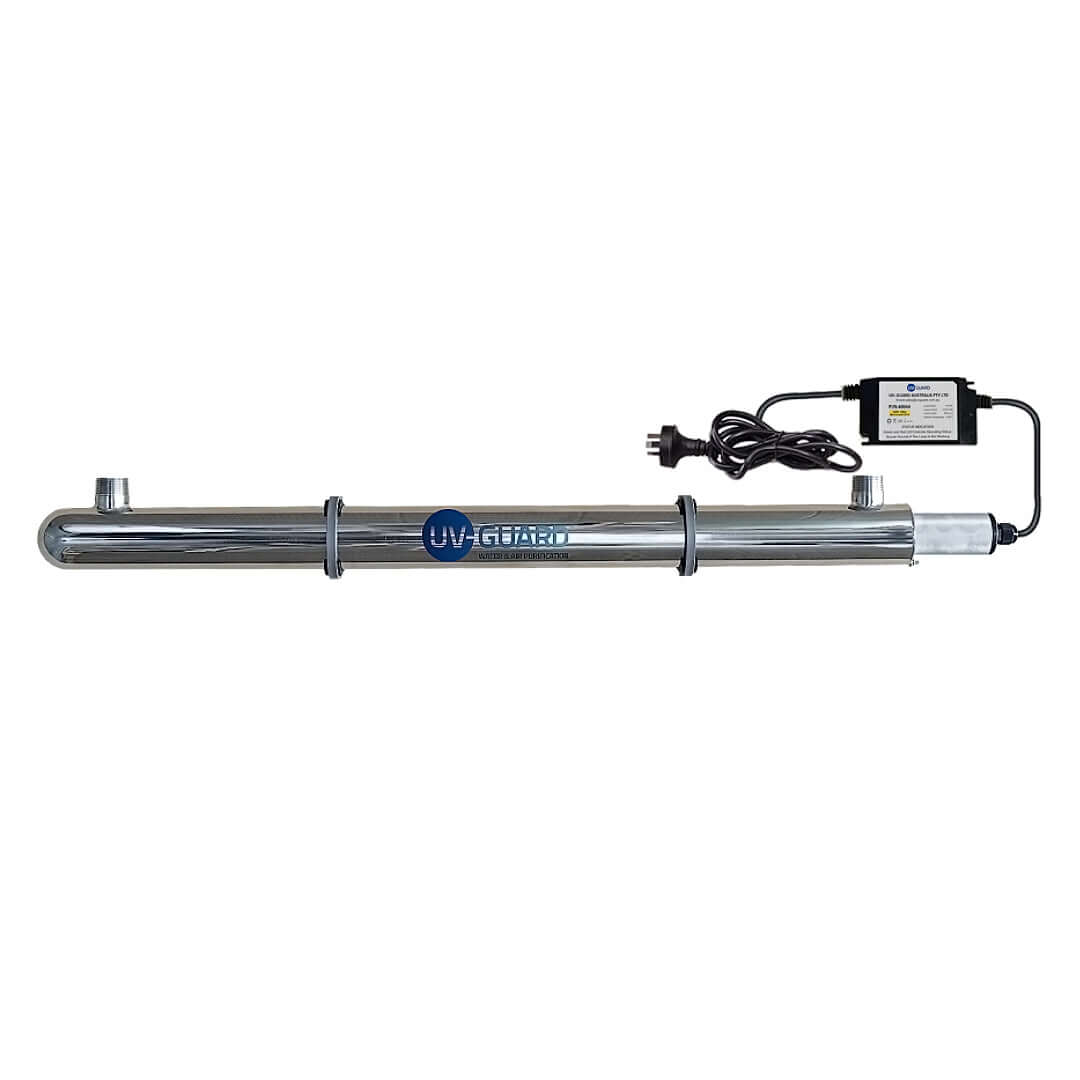

UV System (46 lpm) Medium to Large House
with 316 grade stainless steel reactor, 1" male BSP inlet and outlet connections in a "U" formation, 40W UV lamp, quartz, o-ring and heavy duty poly mounting brackets.
Please select your desired CONTROLLER from the drop down box above.
The SLT-Series is a cost effective and high performing UV water disinfection system. With 8 models in the range and options to allow indoor and outdoor installation, the SLT-Series is ideal for under sink, whole of house, swimming pool and pond clarification uses.
Applications
-
Drinking Water Disinfection – under the sink drinking water disinfection, safeguard your drinking water supplies from pathogens and disease.
-
Whole of House Water Disinfection – ensure that your potable water supply is free from E.coli, Giardia and Cryptosporidium.
-
Pond Clarification – protect your fish from disease, prevent algae growth and keep your pond crystal clear all year around.
-
Swimming Pool Treatment – destroy bacteria and viruses, eliminate algae, reduce Chlorine use by 90% and create a safer environment for your family.
-
Any other application where water disinfection is required.
Benefits
-
No micro-organism is known to be immune to UV – even the chlorine resistant Giardia and Cryptosporidium.
-
Economical and efficient operation – disinfecting at the point of use, no contact time required.
-
No harmful by-products – chemical free, no impact on taste and no corrosion problems.
-
No risk of overdosing – reducing the risks associated with chemical overdosing.
-
Easy maintenance – lamp can be replaced easily without interrupting water flow.
-
Proven performance and flexibility – system designed according to application and project requirements.
-
Peace of mind – power supplies show when lamp is in operation and audibly alerts any faults.
Standard Features
-
High quality 316 grade stainless steel reactor* – ensures longevity of the system.
-
BSP threaded connections on same side – for ease of connection to plumbing infrastructure.
-
Easy to install brackets – chambers securely snap into position.
-
Lamp fail alarm – alerts user and prevents untreated water from being consumed.
-
Innovative high output, low pressure UV lamps – target UV dose is maintained throughout lamp life.
-
Pure fused quartz sleeves – allows optimum UV output from the lamp to the water.
-
Lamps parallel to water flow – water disinfected from chamber entry point to exit.
Controller Options
Please choose from the dropdown above to add this to your UV system.
-
Basic indoor controller – lamp on/off LEDs and lamp fail alarm.
-

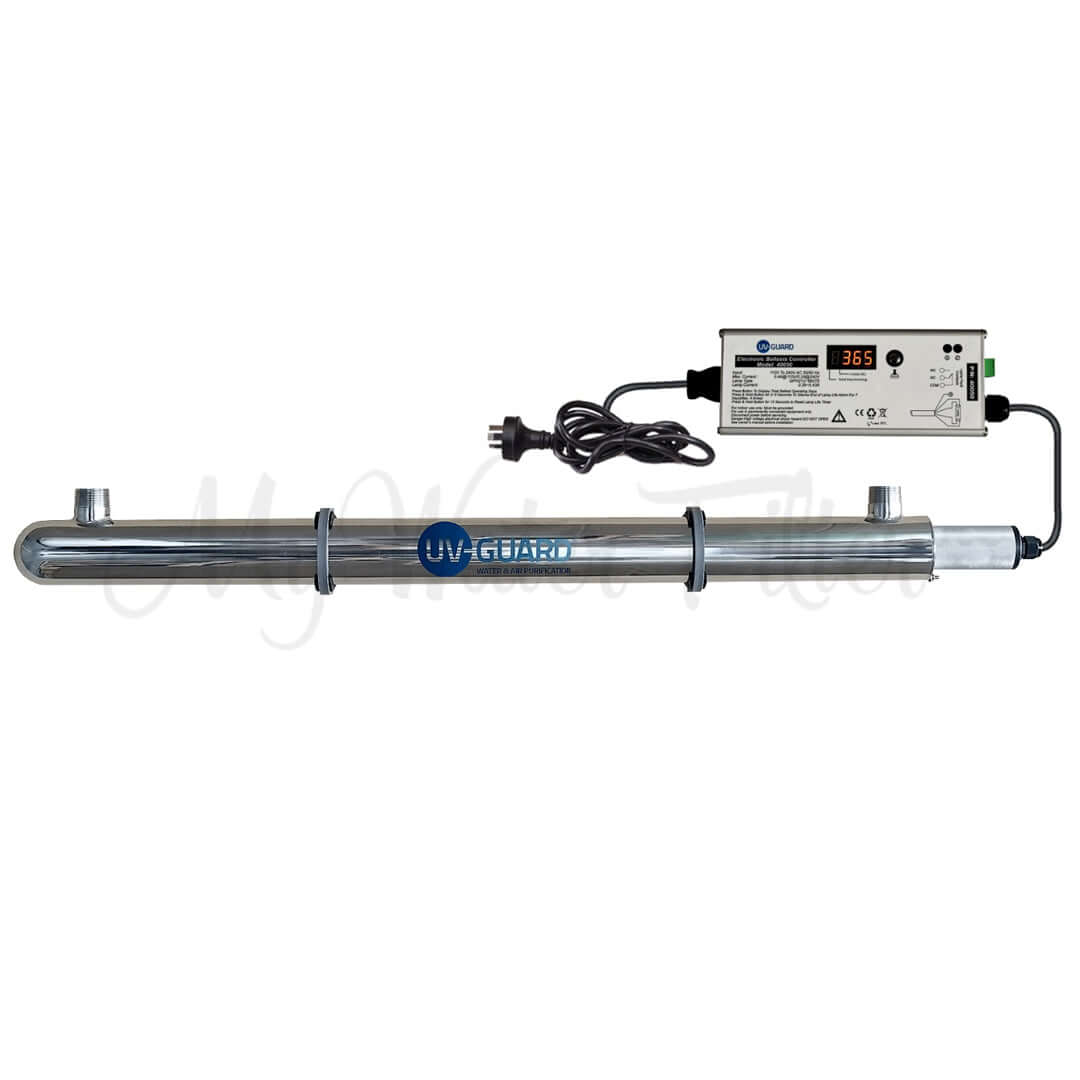

Digital indoor controller – lamp on/off LEDs, lamp fail alarm, digital lamp life timer and volt free alarm contacts.
-

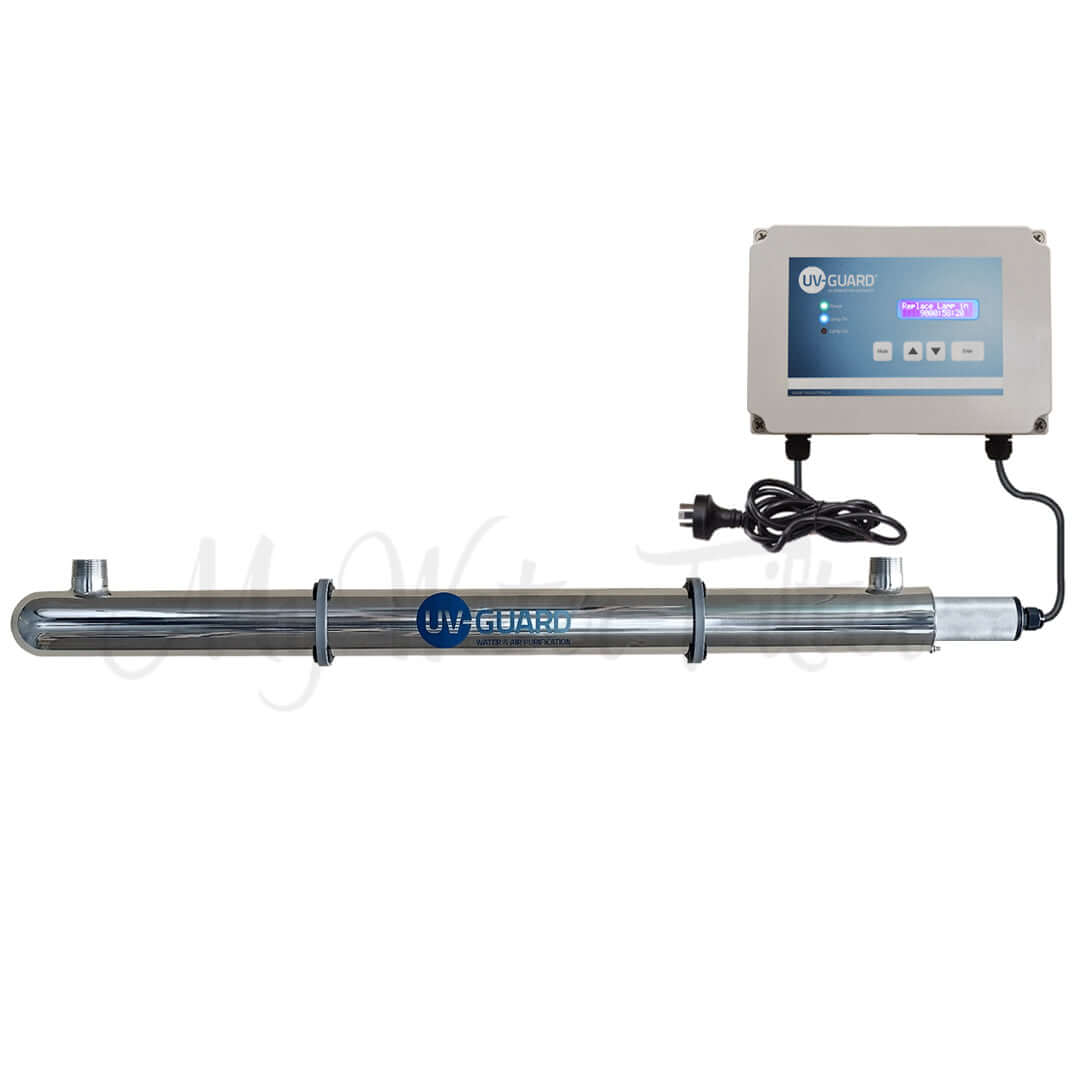

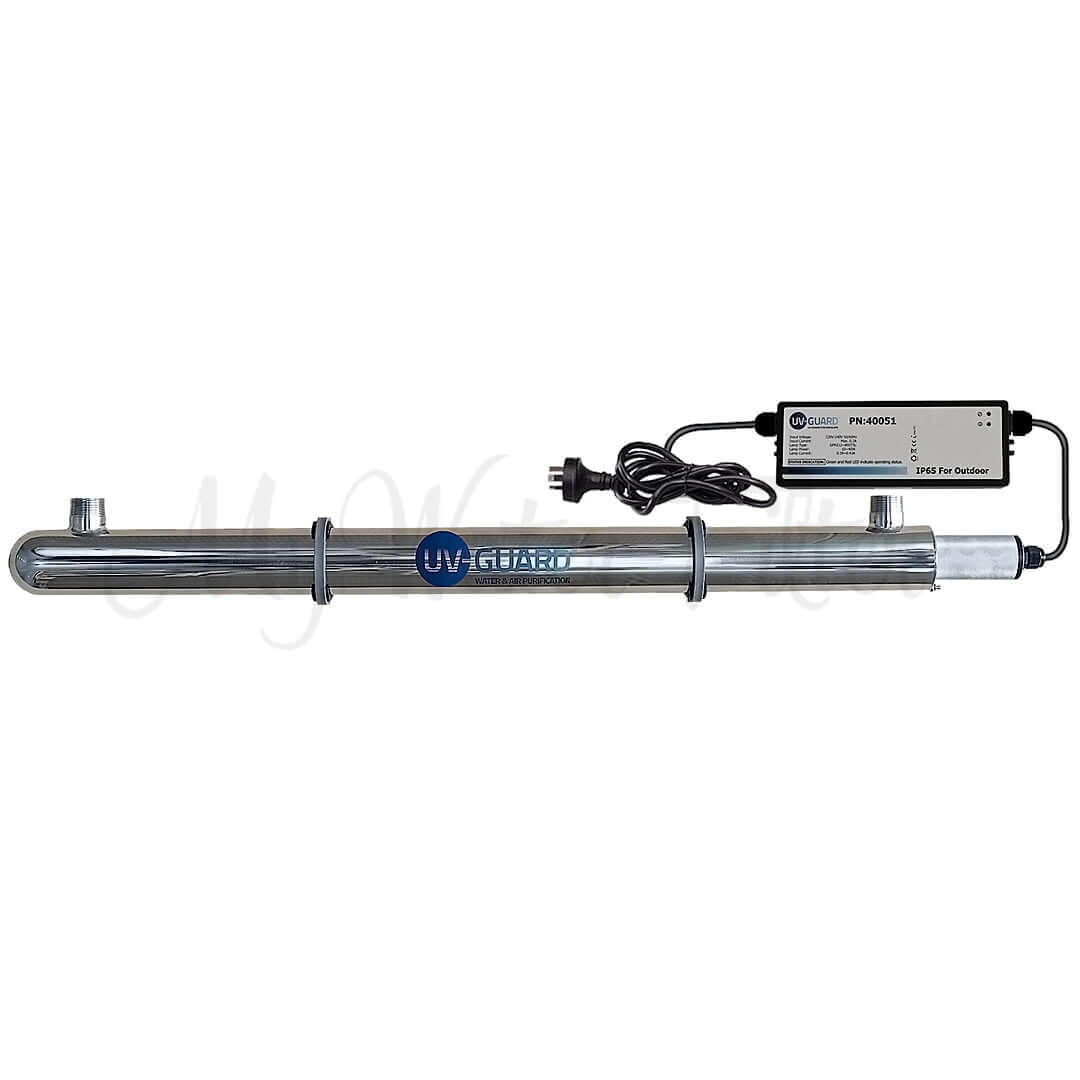

Weatherproof PLC – IP65 rated, lamp on/off LEDs, lamp fail alarm, digital lamp life timer and volt free alarm contacts.
Specifications
| Model | Flow rate per UV Dose figure** 40mJ/cm² |
Flow rate per UV Dose figure** 30mJ/cm² |
Connection | Lamp Power (W) | Dimensions (cm) |
| UVG SLT40 | 26.0 lpm | 34.7 lpm | 1” male BSP 40 | 40 | 99l x 6.3w |
How to Install
How to Replace UV Guard UV Globe and Thimble for a Whole House System Annual Service
Automatic Cartridge Replacement Service
When you invest in a water filtration product from My Water Filter®, we like to ensure you have the best experience possible. We like to lend a hand & take care of you as best we can.
-
We happily monitor the cartridge life for you
-
When the cartridge is due for renewal, we then contact you
-
Once confirmed, we arrange everything and have a new replacement cartridge delivered to your door.
The My Water Filter® Difference
“We love our products and what we do so below are just some of the things we do to make a difference”
We Give Together
When you buy a water filter or home water solution from My Water Filter®, at no extra cost to you, we give life changing drinking water to people in need on your behalf.
Bit by bit we make a difference together. Check out our giving page here.
“We also deliver our products for FREE and you get a 30-day money back guarantee. The product comes with free insurance too!”
Free Delivery Australia Wide
Our 10 Guarantees
30 Day Money Back Guarantee
12 Months Warranty
| Product ID | 690 |
| Model | UV Guard UVG SLT40 40 Watt Whole House Ultraviolet Light System - 46 LPM |
| Dimensions | 99l x 6.3w |
| Housing Warranty | 1 Year |
| Country of Manufacturer | Australia |
| Water Type | Rain Water|Potable Bore Water |
To view the UV lamp replacement price and information for this system please see below:
