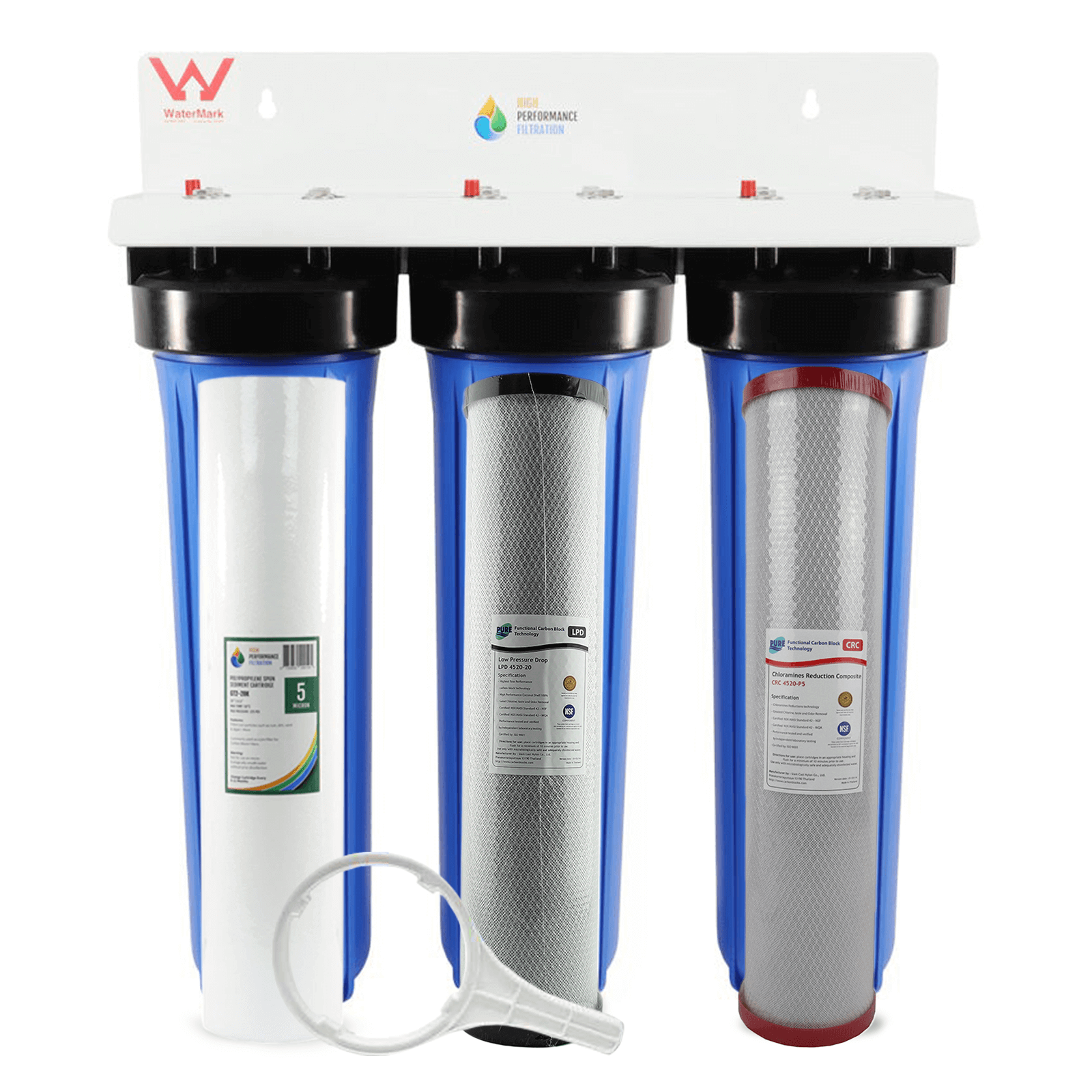

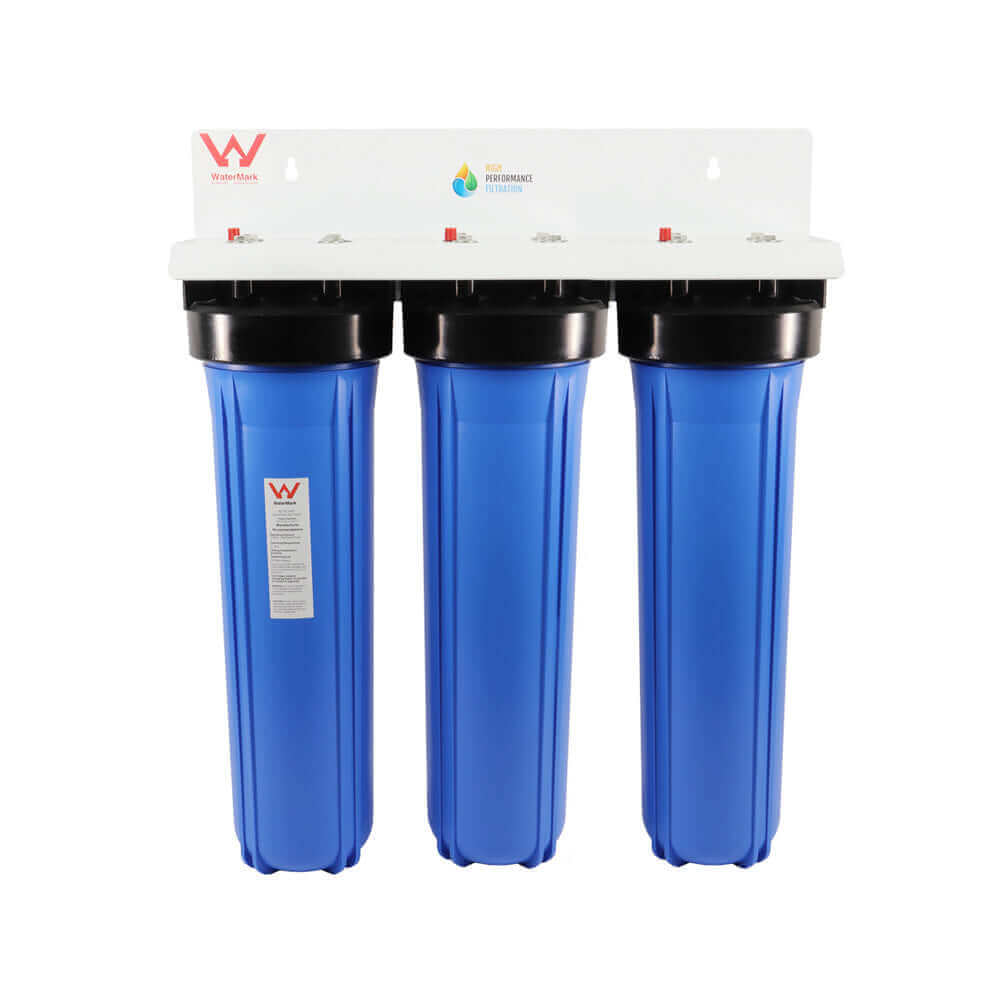

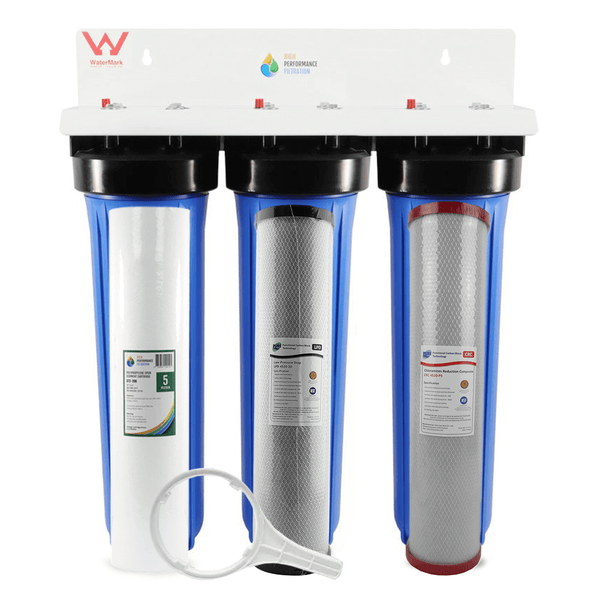

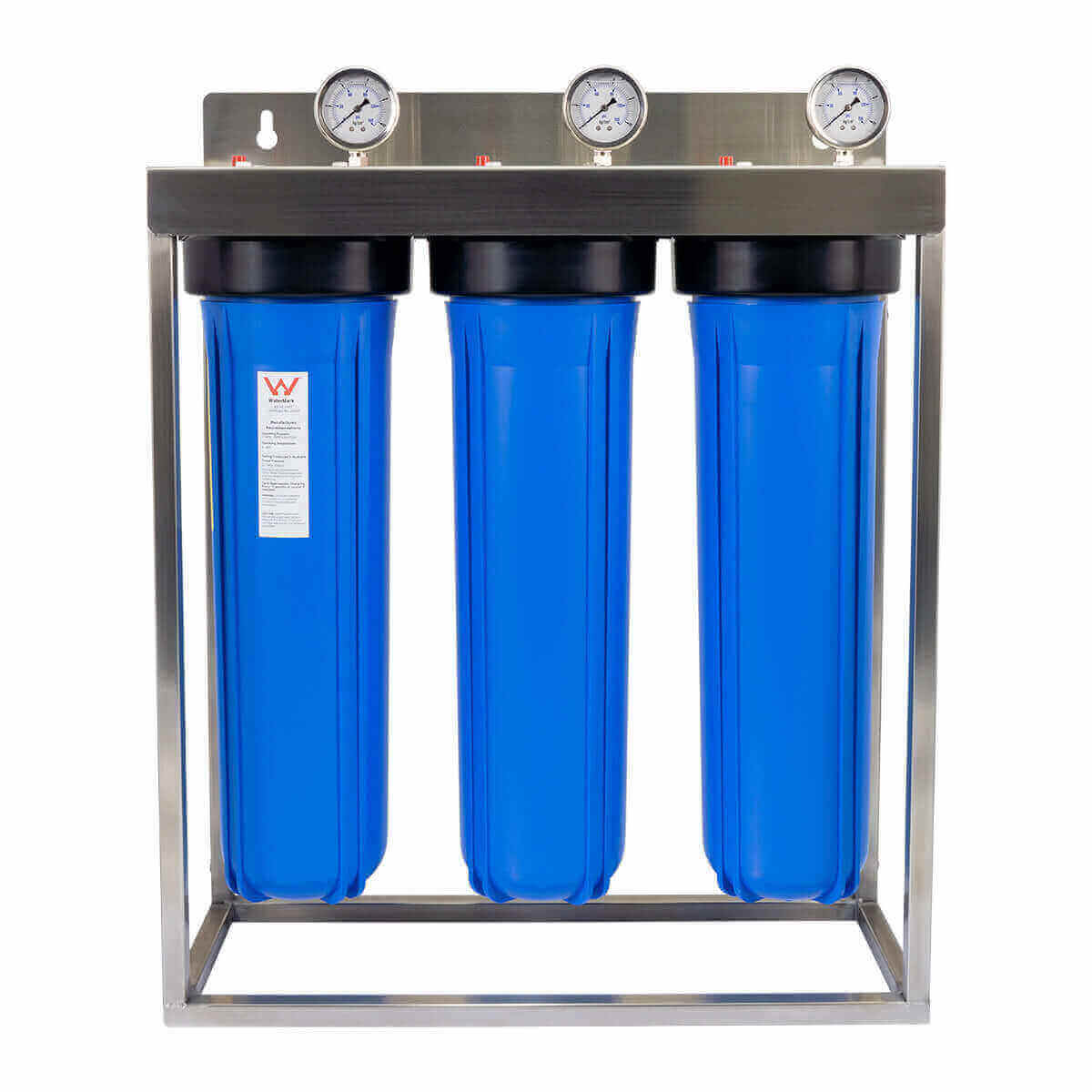

HPF 20" x 4.5" Triple Big Blue Whole House Chloramine Reduction Water Filter System
This is a complete whole of house water filtration system designed to suit any sized home. Created to save you money while making living in your home a whole lot nicer.
Minimal unnoticeable pressure drop & no flow rate drop with this high volume system.
A Complete Easy To Use System
HPF outdoor systems provide you and your family with clean, fresh great tasting water.
Simple and effective water filtration with their combination of high-performance carbon, unique binders and proprietary manufacturing processes, these systems deliver minimal water pressure drop, high dirt holding capacity and excellent contaminant reduction including but not limited to: Sediment, Cysts, Giardia, Cryptosporidium, Chloramine, V.O.C.’s, Taste and Odours.
All components are compliant to NSF/ANSI 42, 53 and 61 where applicable.
PLEASE NOTE: This water filtration system is available in a White or Stainless Steel Bracket. Or with a Stainless Steel Frame & Cover. Please select from the drop down box above.
This system is suitable for households who want the best water possible from their water source. This is a fantastic budget-priced whole house water filter system. It is recommended for any size family.
Technical Specifications
| System Size Dimensions: | Height: 74.5cm Width: 60cm Depth: 22cm |
| Filter Cartridge Size | 20" x 4.5" |
| Ports | 1" Female BSP Inlet/Outlet Ports |
| Pressure | 0 - 620 kPa |
| Limit Pressure | ≤ 500 kPa |
| Temperature | 0.5°C - 37.8°C |
| Max Flow | 60 Ltrs/min (*System tested to 160 Ltrs/min. Maximum flow measured without cartridge. Refer to cartridge specs for flow rates.) |
| Initial ΔP @ Flow | 10 kPa @ 57 Ltrs/min |
Cartridge Included

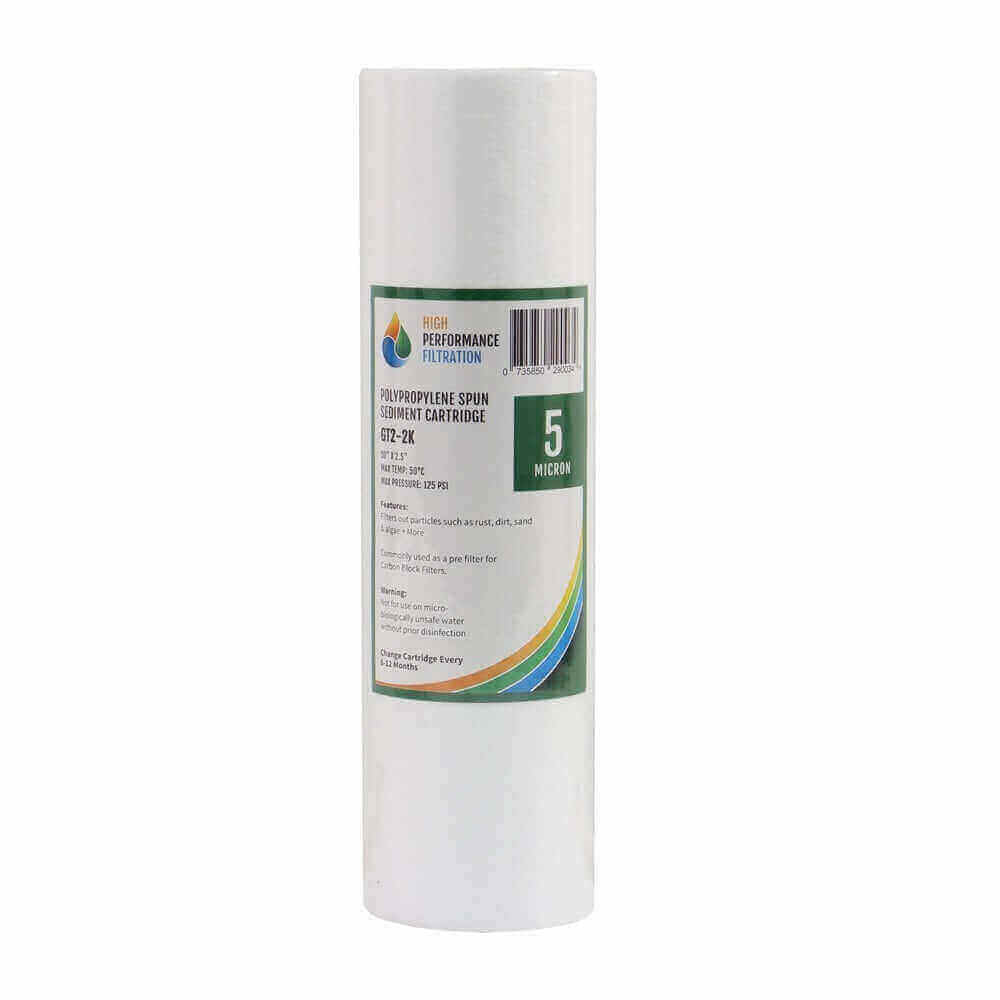

HPF 5 Micron Polyspun Sediment Whole House Water Filter Replacement Cartridge 20" x 4.5"
Polyspun Sediment cartridges provide an efficient and straightforward filtration solution. Crafted from spun-bonded polypropylene, these cartridges have a unique design with no central core, allowing for unrestricted filtration performance. The durable materials also act as a protective barrier against bacteria and chemicals, preventing buildup of unwanted waste, such as algae.
Sediment Cartridges remove:
- Algae
- Dirt
- Particulate matter
- Rust
- Sand
- Sediment
- Silt
Please note: Do not rely on sediment cartridges to filter untreated or unknown water sources for human consumption.

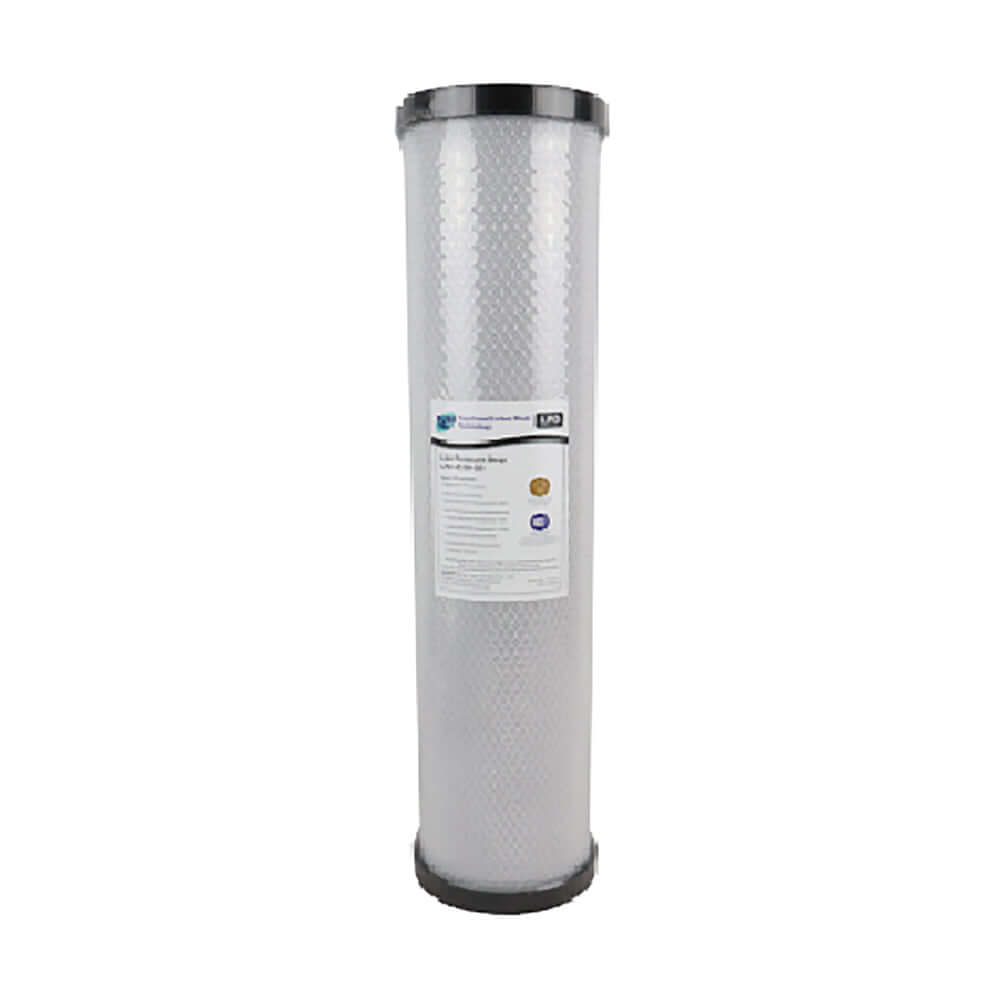

Pure LPD 20 Micron Low Pressure Carbon Block Whole House Water Filter Replacement Cartridge 20" x 4.5
LPD Filters are utilised in cases that require the chemical reduction capacity of a carbon block, combined with the flow rate capacity and differential pressure drop of an impregnated Pleated Filter. The coarser micron rating of 20uM allows the filter cartridge to process a higher volume of water with as little resistance as possible. The success of this cartridge comes by way of the special combination of materials and high iodine number to provide chemical absorption you would expect from a standard CTO cartridge, while at the same time having almost 30% less media creating a thinner block wall, allowing water to flow at a higher rate with little resistance.

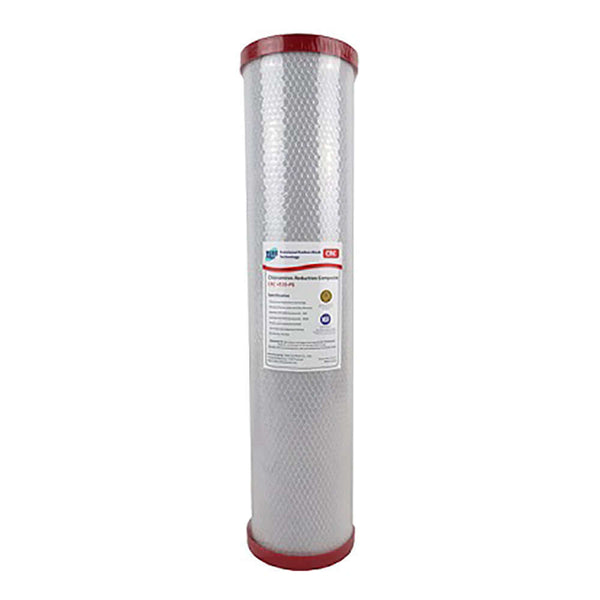

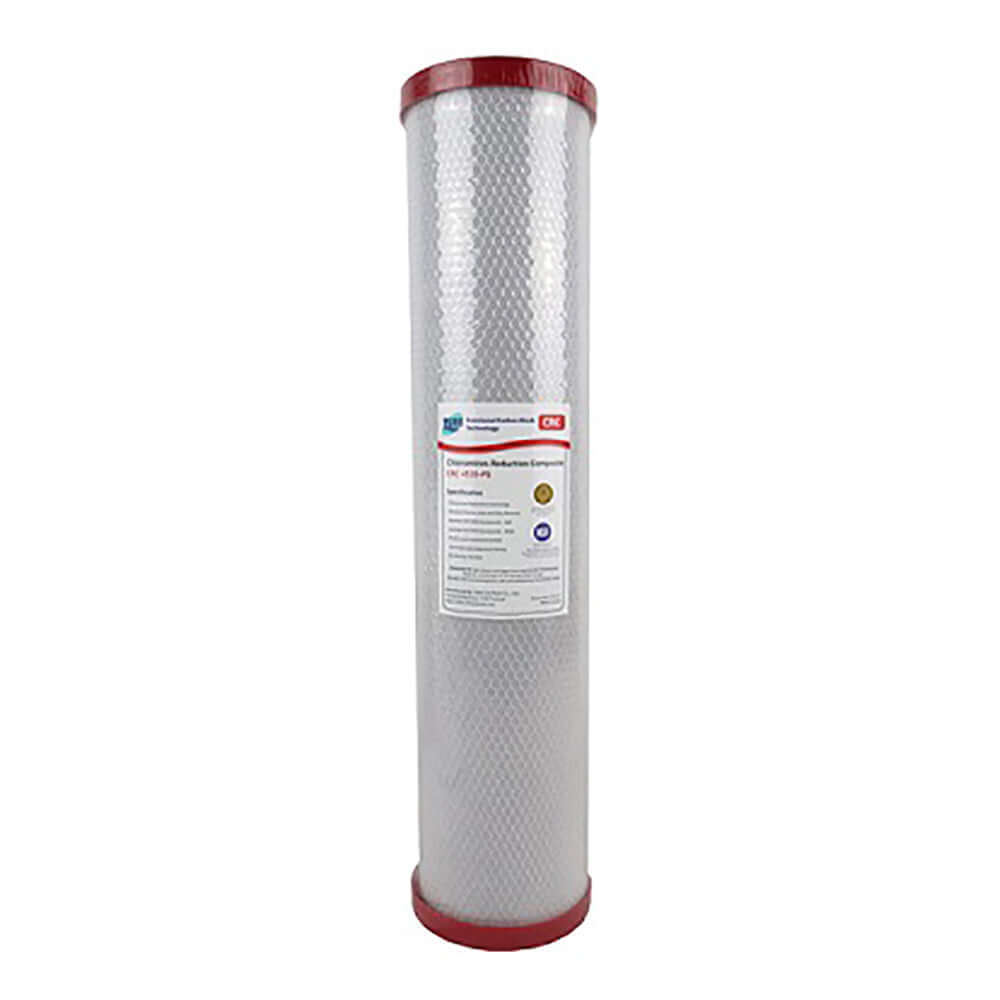

Pure CRC 0.5 Micron Chloramine Reduction Carbon Block Whole House Water Filter Replacement Cartridge 20" x 4.5"
Pure Coconut Carbon Block Filters are made from a combination of high-performance coconut shell carbon, unique binders and industry leading manufacturing processes to deliver trade quality carbon block filters. They deliver exceptionally low pressure drop while maintaining a high dirt holding capacity with excellent contaminant reduction capabilities.
Pure Carbon Blocks are registered in compliance with NSF/ANSI 42, 53 and 61 for several things, including VOC’s, THM’s, Lead & Heavy Metal Reduction, Chloramine Reduction & Chlorine Taste & Odour reduction. This also includes meeting standards of purity & safety of the materials used.
Pure's CRC range of Coconut Carbon filters are a market leader when it comes to the removal of monochloramine from municipal water. Boasting a 0.5uM nominal rating, this filter has a huge advantage due to the highly reactive surface area of the composite carbon designed to denature and neutralise chloramine with minimal contact time.
Free chlorine can be easily removed from water with minimal contact time, however now most municipal water supplies in Australia are using Monochloramine. Monochloramine is an ammonia bonded Chlorine molecule (NH2Cl) which is an inorganic compound. While monochloramine is noted to produce lower (but still present) levels of chlorocarbons and carbon tetrachloride levels, there are other known health risks that can be far more serious.
The addition of Chloramine to the water supply can increase exposure to lead in drinking water, especially in areas with older infrastructure. Australia has a large percentage of old buildings where this can be a serious risk. In some cases, with older buildings, it has been noted that the mixture of monochloramine and Fluorosilicic Acid can even dissolve metals such as copper pipes, causing green/blue staining in the water and damaging plumbing.
Gauges
Supplied with 3 quality gauges so you can tell how the system is performing at all times. Once the system is installed and working away you will be able to see your normal water pressure across the 3 gauges. These gauges allow you to know when to change the cartridges, so you don't waste money replacing cartridges that still have life left in them. A great asset to easily see how the cartridges are performing at all times.
Cartridge Replacement Tool
This handy molded cartridge housing tool is used to break the seal or tighten up the cartridge housings when required. Normally only ever used when you do your annual cartridge replacement.
Where To Install Your New Water Filter System
Take a look at the little video explaining how you can find your incoming water pipe. Once the main water pipeline is exposed, try to have the water filter connection after the point that your garden & lawn reticulation is connected. This way the filter is not filtering water that just flows onto the yard. If not possible that is ok just install the system where you can.
Maintenance And Replacement Cartridges
Cartridges are very easy to replace and need to be changed over every 12 months depending on your water quality and usage. The Limetron water conditioner requires no ongoing maintenance. Take a look at the plumber as he changes the cartridges in the whole house water filter system in the video below.
Automatic Cartridge Replacement Service
When you invest in a water filtration product from My Water Filter®, we like to ensure you have the best experience possible. We like to lend a hand & take care of you as best we can.
-
We happily monitor the cartridge life for you
-
When the cartridge is due for renewal, we then contact you
-
Once confirmed, we arrange everything and have a new replacement cartridge delivered to your door.
Save Money
Using this whole house filter Stops scale build-up on your appliances making them cheaper to heat and operate. In the long run, you will find that your appliances will last longer thus, saving money on buying new ones.
Installation
When installing or replacing any water filter cartridges ensure the main water supply is turned off prior to starting. Ensure you know what you are doing or have a qualified person to help you.
How To Install A Whole House Water Filter
What Tools We Use For A Whole House Water Filter Installation
Long Lasting Service Life Of 12 Months For Cartridge And 5 Years On The Housing
The cartridges in this system have a long-lasting service life of up to 12 months and 5 years on the housing. We'll reach out to you when it's time to change the cartridges, making the process as hands-free as possible for you.
Fully Disposable Cartridges
Simply wrap your worn-out cartridges up in old newspaper and place them into your rubbish bin.
The My Water Filter® Difference
“We love our products and what we do so below are just some of the things we do to make a difference”
Transform Lives Through Clean Water Access
At My Water Filter, our steadfast commitment goes beyond our customers and their families; we are dedicated to enhancing lives on a broader scale.
The core of our mission lies in leaving a legacy and making a meaningful difference in the world. With every purchase you make, we contribute 30 days' access to Life Saving Clean Water to those in need, acting as a catalyst for positive change.
We give water on your behalf through our enduring partnership with the Global Giving Initiative, Buy1GIVE1.
Your choice to support My Water Filter translates into tangible assistance for those in need, contributing to the collective effort of saving lives. Thank you for being a crucial part of this journey and for enabling us to make a genuine impact, one purchase at a time.
We Give Together
When you buy a water filter or home water solution from My Water Filter®, at no extra cost to you, we give life changing drinking water to people in need on your behalf.
Bit by bit we make a difference together. Check out our giving page here.
“We also deliver our products for FREE and you get a 30-day money back guarantee. The product comes with free insurance too!”
Free Delivery Australia Wide
Our 10 Guarantees
1 year warranty on the parts
5 year warranty on the housing
| Product ID | 2530 | ||||||||||||||||
| Model | HPF 20" x 4.5" Triple Big Blue Whole House Chloramine Reduction Water Filter System | ||||||||||||||||
| Dimensions | Technical Specifications
|
||||||||||||||||
| Housing Warranty | 5 Years | ||||||||||||||||
| Accessories and Parts Warranty | 1 Year | ||||||||||||||||
| Micron Rating | 5 Micron|0.5 Micron|20 Micron | ||||||||||||||||
| Filter Cartridge Size | 20" x 4.5" |
