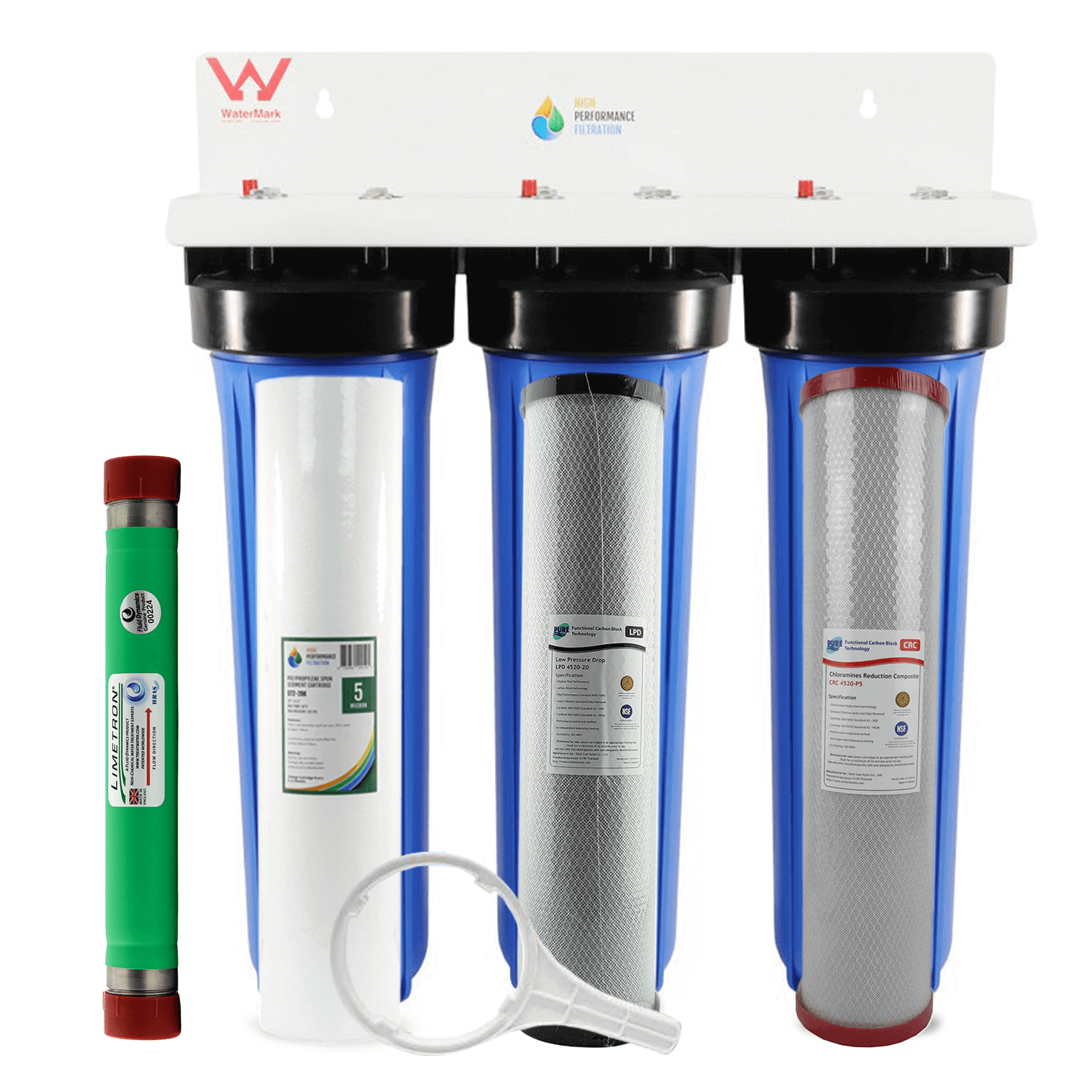

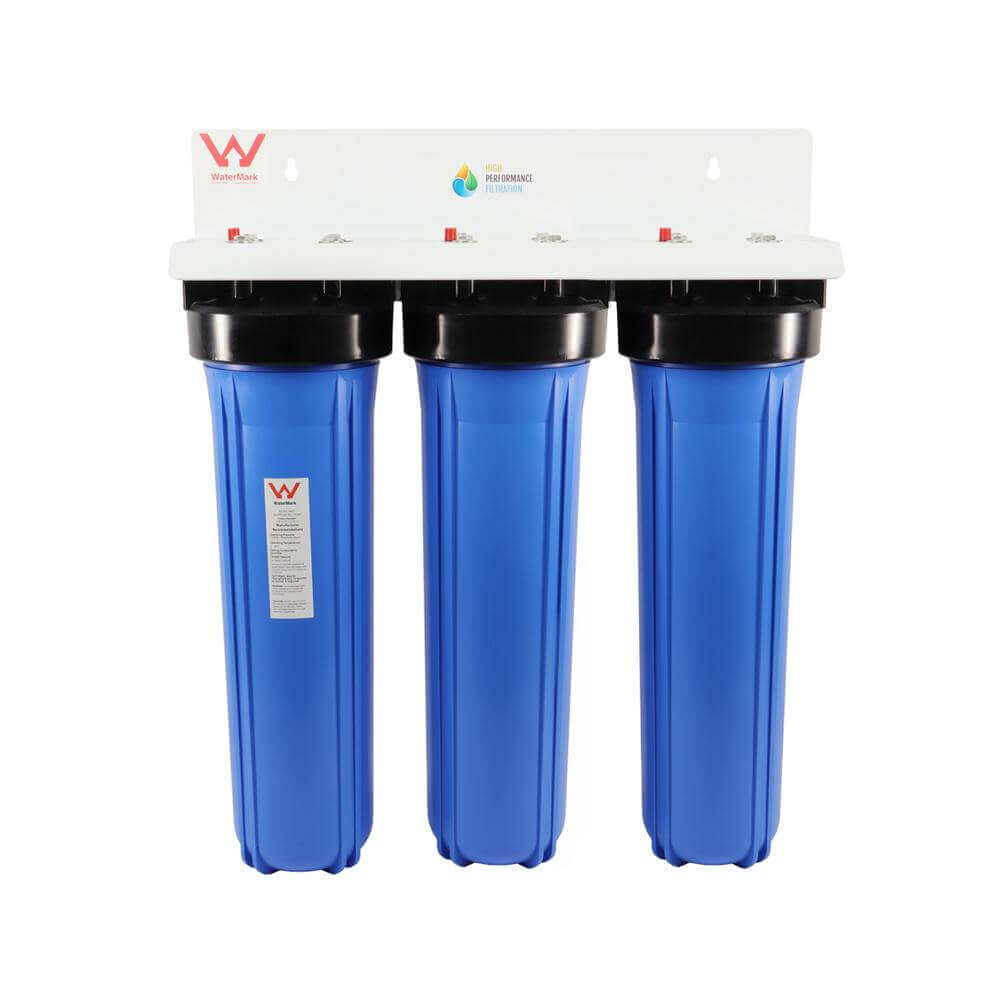

HPF 20" x 4.5" Triple Big Blue Whole House Chloramine Reduction Water Filter System Complete with Hard Water Conditioner

This whole house water filter system is designed for Chloramine water in towns & cities where there are lots of minerals present in the water creating hard water that damages home appliances.

This is a complete whole of house water filtration system designed to suit any sized home. Created to save you money while making living in your home a whole lot nicer.

Conditions incoming calcium & magnesium minerals & removes Chloramine prior to flowing into your home. Minimal unnoticeable pressure drop & no flow rate drop with this high volume system.

A complete easy to use system

A simple hands-off system for those people who are not only serious about removing the amount of Chloramine they have in their water supply, but want the Calcium & Magnesium treated, want cleaner pipes & home appliances that last longer perform better and require much fewer repairs & maintenance and have cheaper heating bills as the scale build-up on your home appliances is removed, then this is the system for you.

HPF outdoor systems provide you and your family with clean, fresh great tasting water.

Simple and effective water filtration with their combination of high-performance carbon, unique binders and proprietary manufacturing processes, these systems deliver minimal water pressure drop, high dirt holding capacity and excellent contaminant reduction including but not limited to: Sediment, Cysts, Giardia, Cryptosporidium, Chloramine, V.O.C.’s, Taste and Odours.

All components are compliant to NSF/ANSI 42, 53 and 61 where applicable.

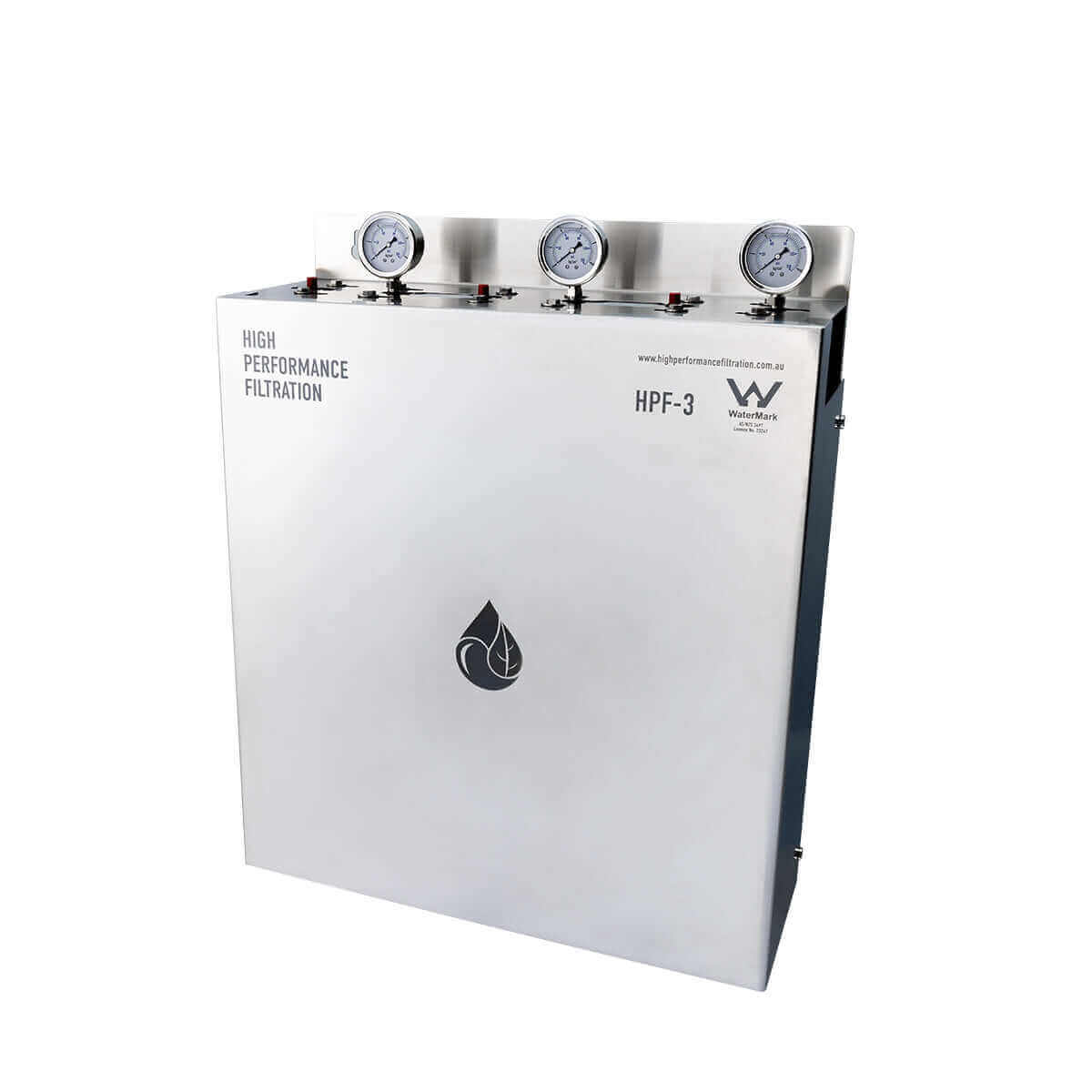

PLEASE NOTE: This water filtration system is available in a White or Stainless Steel Bracket. Or with a Stainless Steel Frame & Cover. Please select from the drop down box above.

This system is suitable for households who want the best water possible from their water source. This is a fantastic budget-priced whole house water filter system. It is recommended for any size family.

Technical Specifications

Clean Chloramine-free, scale-free throughout your whole home is just a beautiful way to live.

How does the system work?

As the water enters your property the first step is the treatment of the calcium & magnesium. This is where the action starts. This is made possible with the use of a Limetron water conditioner. As the water passes through the Limetron water conditioner, the adhesive components around the mineral particles in your water are separated, then as the water flows out of the Limetron water conditioner, the mineral particles are free from the adhesive components.

This then stops the mineral particles and salts from adhering to your pipes and appliances and blocking them up ensuring a shorter life. Over time you should also see old scale & rust buildup removed from throughout your system.

But the real beauty with the Environmentally Friendly Limetron water conditioner is the calcium & magnesium is still present in the water, so you still have the benefit of consuming these beneficial minerals. They just don’t stick to everything anymore.

Just be aware the conditioner can not remove the mineral it only treats it, so if you leave a wet shower glass or glassware on the sink to drip dry once the water evaporates it will leave the mineral behind. It won't be as harsh as untreated mineral but will be visible. The best way is to still squeegee the shower glass after a shower.

As the water flows on into the first stage of the Big Blue water filter this is where the water is screened and any sediment is removed ready for stages 2 & 3 where the high volume carbon block cartridges remove the Chloramine.

This whole house water filter is a strong robust filter that is specifically designed for places where high flow rate is required whether for your home, commercial or industrial use.

Stage 1: LIMETRON Water Conditioner

What Makes This Product So Unique

No Chemicals or Salts - Unlike with water softeners you do not need any chemicals or salts in order to prevent and eliminate scale - saving money.

No Electricity - This device works without the need for electricity or any other energy source for its operation.

No Moving Parts - The parts in this device do not move, they work without any wear or erosion, thus there is no need to replace parts including the inner core.

Save Energy & Money - The use of a quality Anti Scalent device like the Limetron water conditioner prevents the deposit of scale on pipes & heating elements thus saving energy, for example, 1 mm of scale crust is equal to a 10% increase in your energy consumption.

Better Growth for your Plants & Garden – Plants love conditioned water

No Maintenance - The Limetron water conditioner requires no ongoing maintenance after installation.

Amazing Guarantee & Warranty

• Is supplied with a 1-year money-back 100% satisfaction guarantee

• Has a 10-year manufacturers warranty

• Has a life expectancy of 15+ years

To learn more about the Limetron Water Conditioner “Click Here”

Stage 2: HPF 5 Micron Polyspun Sediment Whole House Water Filter Replacement Cartridge 20" x 4.5"

The HPF 5 Micron Polyspun Sediment Whole House Water Filter Replacement Cartridge 20" x 4.5" is designed to fit a range of whole house water filters, ensuring clean and safe water for all uses.

Constructed from polypropylene through a unique spinning and melting process, these cartridges are free from a restricting centre core, allowing for maximum filtration efficiency. The polyspun material makes the filter highly effective in removing sediment, rust, sand, silt, and algae from the water. This advanced design ensures there are no chemical residuals left behind, maintaining the purity of the water.

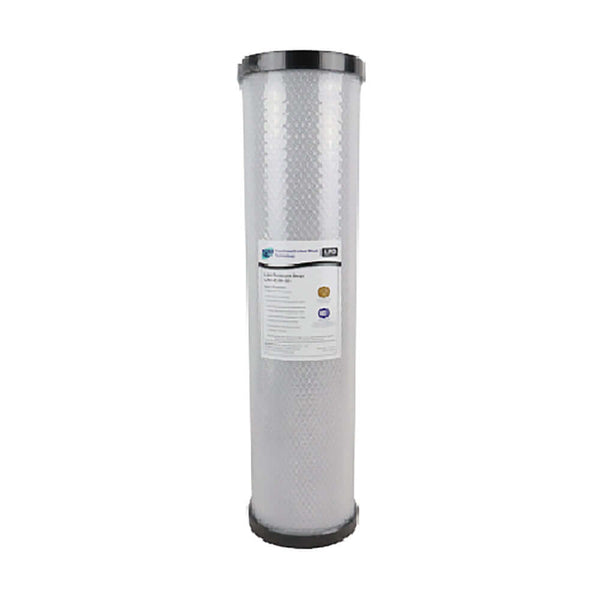

Stage 3: Pure LPD 20 Micron Low Pressure Carbon Block Whole House Water Filter Replacement Cartridge 20" x 4.5

LPD Filters are utilised in cases that require the chemical reduction capacity of a carbon block, combined with the flow rate capacity and differential pressure drop of an impregnated Pleated Filter. The coarser micron rating of 20uM allows the filter cartridge to process a higher volume of water with as little resistance as possible. The success of this cartridge comes by way of the special combination of materials and high iodine number to provide chemical absorption you would expect from a standard CTO cartridge, while at the same time having almost 30% less media creating a thinner block wall, allowing water to flow at a higher rate with little resistance.

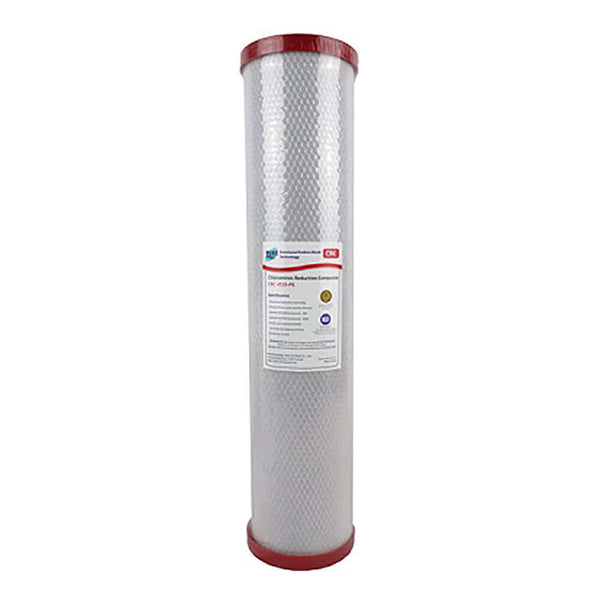

Stage 4: Pure CRC 0.5 Micron Chloramine Reduction Carbon Block Whole House Water Filter Replacement Cartridge 20" x 4.5"

Pure Coconut Carbon Block Filters are made from a combination of high-performance coconut shell carbon, unique binders and industry leading manufacturing processes to deliver trade quality carbon block filters. They deliver exceptionally low pressure drop while maintaining a high dirt holding capacity with excellent contaminant reduction capabilities.

Pure Carbon Blocks are registered in compliance with NSF/ANSI 42, 53 and 61 for several things, including VOC’s, THM’s, Lead & Heavy Metal Reduction, Chloramine Reduction & Chloramine Taste & Odour reduction. This also includes meeting standards of purity & safety of the materials used.

Pure's CRC range of Coconut Carbon filters are a market leader when it comes to the removal of monochloramine from municipal water. Boasting a 0.5uM nominal rating, this filter has a huge advantage due to the highly reactive surface area of the composite carbon designed to denature and neutralise chloramine with minimal contact time.

Free chlorine can be easily removed from water with minimal contact time, however now most municipal water supplies in Australia are using Monochloramine. Monochloramine is an ammonia bonded Chlorine molecule (NH2Cl) which is an inorganic compound. While monochloramine is noted to produce lower (but still present) levels of chlorocarbons and carbon tetrachloride levels, there are other known health risks that can be far more serious.

The addition of Chloramine to the water supply can increase exposure to lead in drinking water, especially in areas with older infrastructure. Australia has a large percentage of old buildings where this can be a serious risk. In some cases, with older buildings, it has been noted that the mixture of monochloramine and Fluorosilicic Acid can even dissolve metals such as copper pipes, causing green/blue staining in the water and damaging plumbing.

Gauges

Supplied with 3 quality gauges so you can tell how the system is performing at all times. Once the system is installed and working away you will be able to see your normal water pressure across the 3 gauges. These gauges allow you to know when to change the cartridges, so you don't waste money replacing cartridges that still have life left in them. A great asset to easily see how the cartridges are performing at all times.

Cartridge Replacement Tool

This handy molded cartridge housing tool is used to break the seal or tighten up the cartridge housings when required. Normally only ever used when you do your annual cartridge replacement.

Where to install your new water filter system

Take a look at the little video explaining how you can find your incoming water pipe. Once the main water pipeline is exposed, try to have the water filter connection after the point that your garden & lawn reticulation is connected. This way the filter is not filtering water that just flows onto the yard. If not possible that is ok just install the system where you can.

Where Is The Best Place To Install The Limetron Water Conditioner

Ultimately you would install your new Limetron Water Conditioner near the front water metre, which will ensure all your entire property will be protected with conditioned water. This way the reticulation & sprinklers will not block up.

The garden and lawn will reap the benefits of the calcium & magnesium been treated. But if you cant install it at the water metre anywhere along your incoming water pipe is fine & even just before the water filter.

Maintenance and Replacement Cartridges

Cartridges are very easy to replace and need to be changed over every 12 months depending on your water quality and usage. The Limetron water conditioner requires no ongoing maintenance. Take a look at the plumber as he changes the cartridges in the whole house water filter system in the video below.

Automatic Cartridge Replacement Service

When you invest in a water filtration product from My Water Filter®, we like to ensure you have the best experience possible. We like to lend a hand & take care of you as best we can.

• We happily monitor the cartridge life for you

• When the cartridge is due for renewal, we then contact you

• Once confirmed, we arrange everything and have a new replacement cartridge delivered to your door.

Save Money

Using this whole house filter Stops scale build-up on your appliances making them cheaper to heat and operate. In the long run, you will find that your appliances will last longer thus, saving money on buying new ones.

Installation

When installing or replacing any water filter cartridges ensure the main water supply is turned off prior to starting. Ensure you know what you are doing or have a qualified person to help you.

How to Install a Whole House Water Filter

What Tools we use for a Whole House Water Filter Installation

Long Lasting Service Life of 12 Months for Cartridge and 5 Years on the Housing

The cartridges in this system have a long-lasting service life of up to 12 months and 5 years on the housing. We'll reach out to you when it's time to change the cartridges, making the process as hands-free as possible for you.

Fully Disposable Cartridges

Simply wrap your worn-out cartridges up in old newspaper and place them into your rubbish bin.
