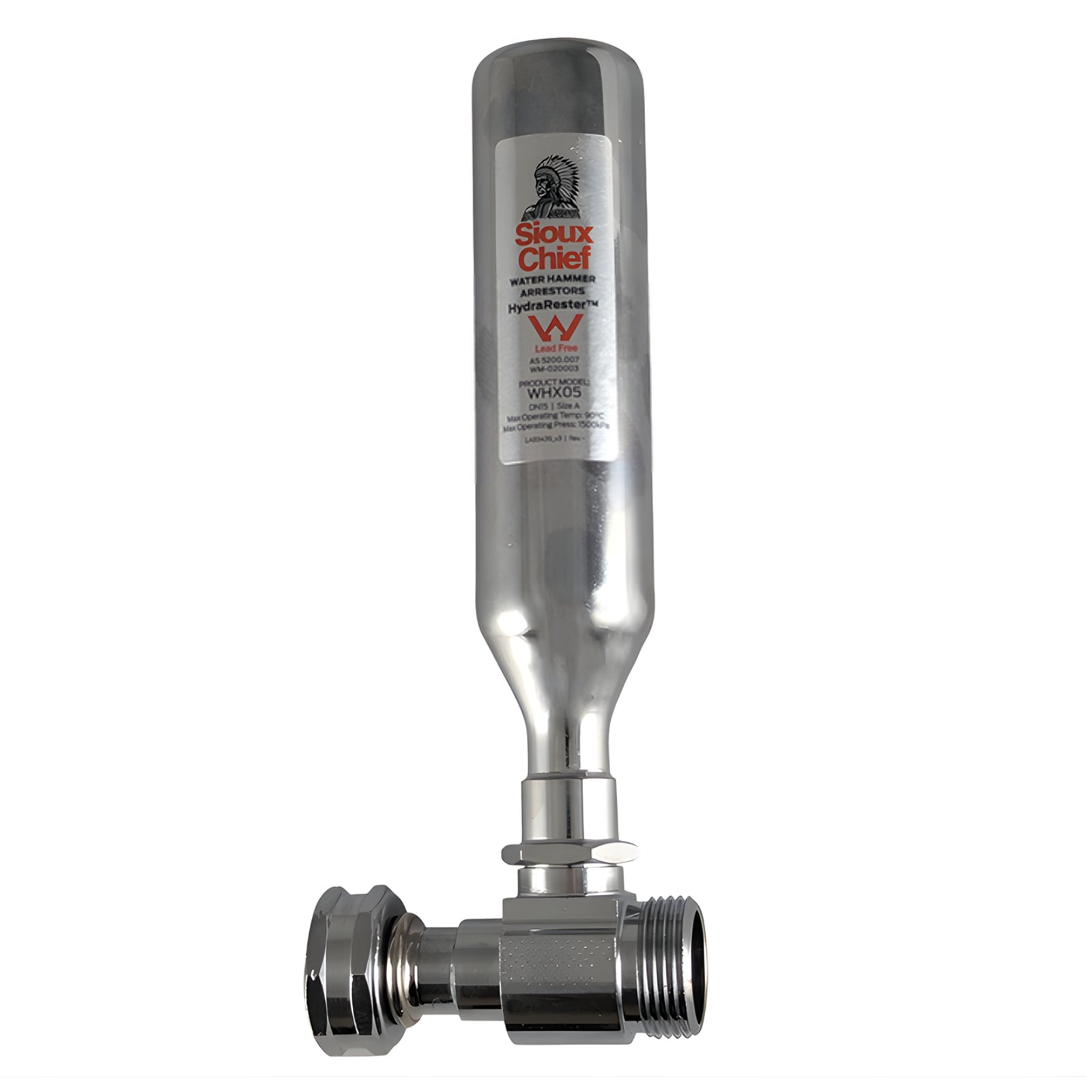

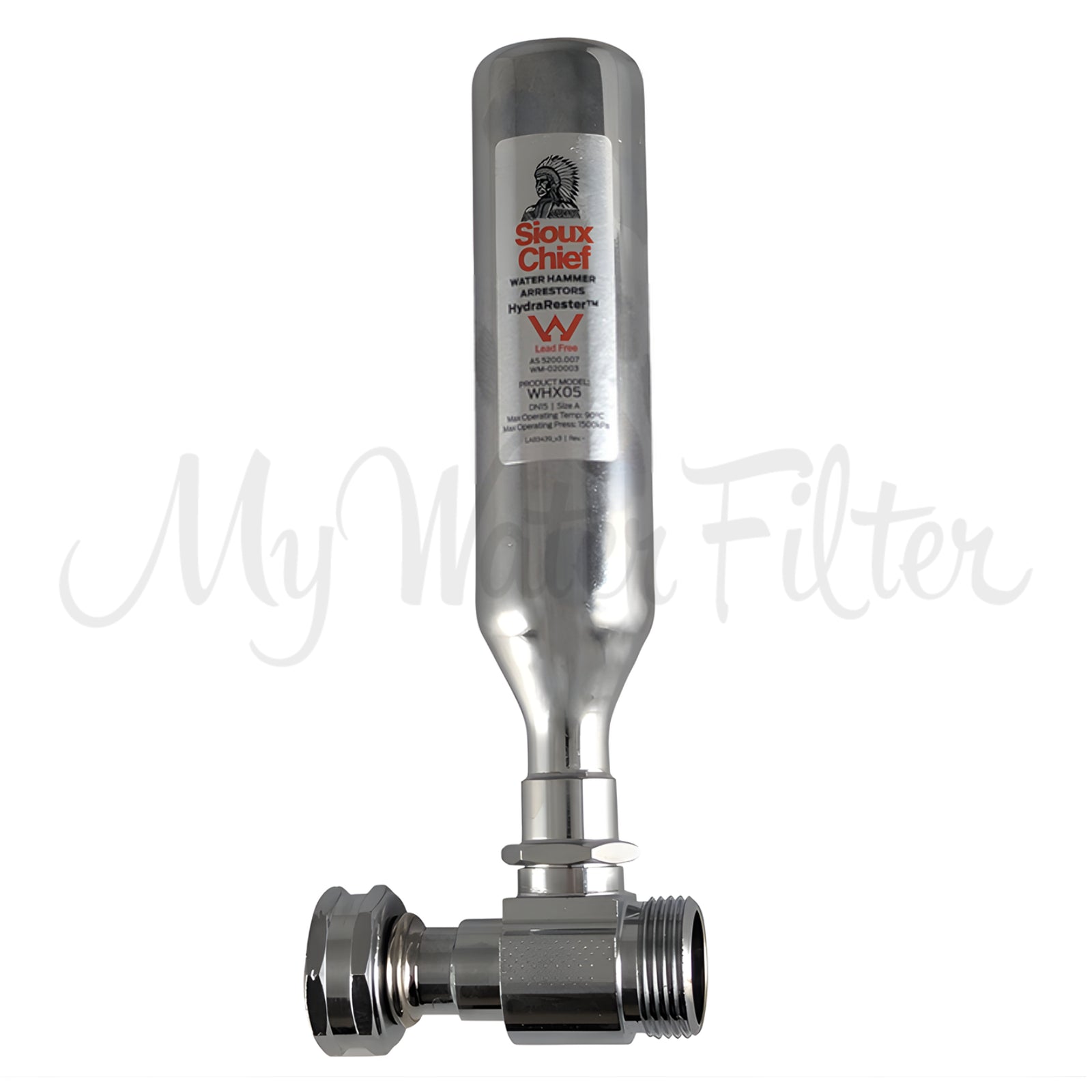

Water Hammer Arrestor 3/4" BSP Thread
Operating Pressure: Designed to operate on all domestic and commercial lines at 140psi working pressure.
Systems which exceed 60spi shall be installed with a pressure reducing valve upstream of the unit.
Thread Size: 3/4"
Temperature Range: 33*F to 180*F
Standards: A.S.S.E. 1010 Approved, ANSI A112.26.1M Approved, P.D.I. WH201 Approved & Certified
Water hammer is a pressure surge or wave caused when a fluid (usually a liquid but sometimes also a gas) in motion is forced to stop or change direction suddenly (momentum change). Water hammer commonly occurs when a valve closes suddenly at an end of a pipeline system, and a pressure wave propagates in the pipe.
This pressure wave can cause major problems, from noise and vibration to pipe collapse. This water hammer arrestor device is designed to prevent the impact that this has on water pipes and also water filters or housings that may also be present on the line.
This device could potentially save you thousands of dollars in damage if you are not at home when leaks in damaged pipes occour and in alot of cases landlords or homeowners/insurance people do not look favourably at houses that have taken no precautionary measures in protecting their home.
Installation
May be installed in new or existing plumbing systems with a standar pipe tee veritcally, horizontally or at any angle. It is best to be installed at a location nearest the point that there seems to be a signifigant problem
Installation Instructions:
1. Install as close to the shock source as possible.
2. Install a shock arrestor on both hot and cold lines.
3. Best Results are obtained when installed as shown in figure 1 and figure 2. They can be installed in concealed locations without access pannels
